Removing Cylinder Head - Right Cylinder Bank

WARNING: This page is about a different variant/trim than selected.

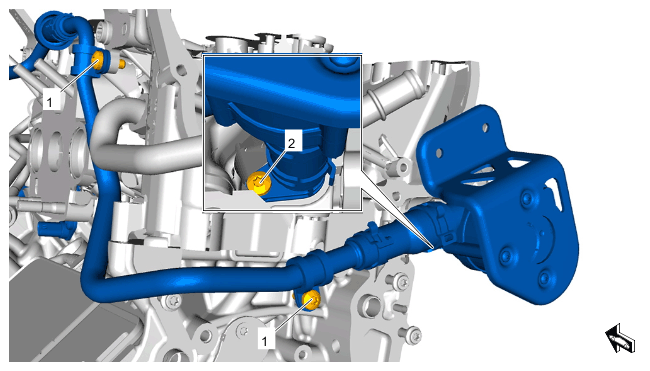

Remove additional coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump
1. 1.1 Unscrew screws on coolant line holder -1- .
2. 1.2 Unscrew screw on coolant flange -2- and pull off the flange.
3. 1.3 Remove additional coolant pump with coolant lines.

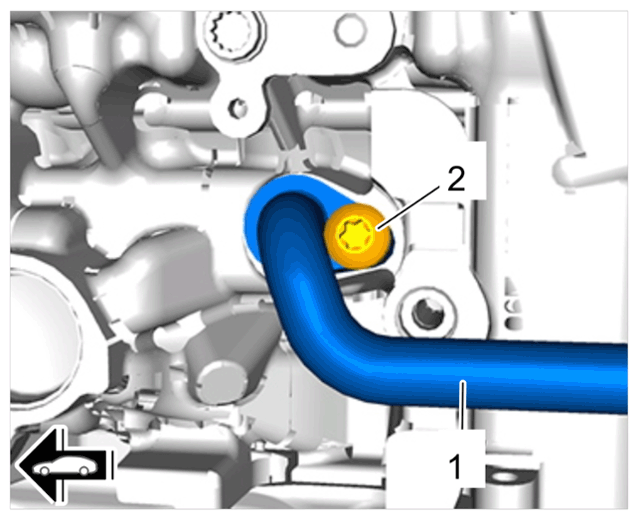

Remove side coolant pipe -1- by unscrewing screw -2- and removing coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side coolant pipe on right cylinder bank

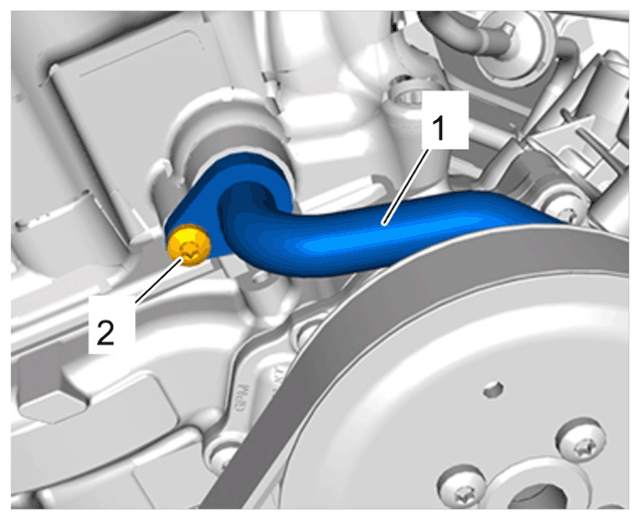

Remove front coolant pipe -1- by unscrewing screw -2- and removing coolant pipe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front coolant pipe on right cylinder bank

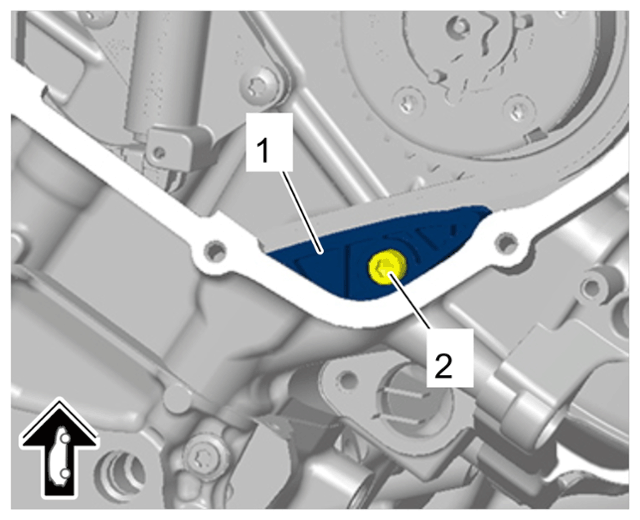

Loosen guide rail -1- from right cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail for right cylinder head
1. 4.1 Unscrew bearing pin -2- .
Remove cylinder head.

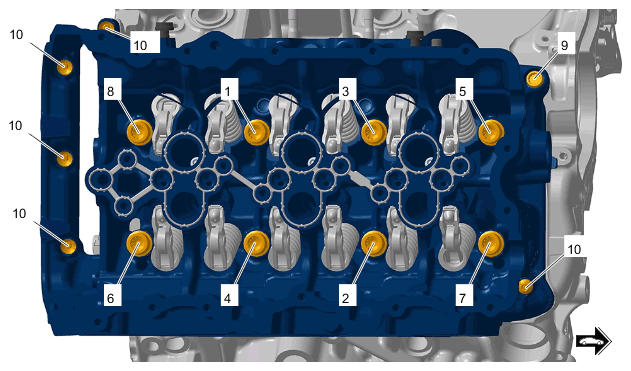

Fig 1: Cylinder Head On Right Cylinder Bank Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head on right cylinder bank
1. 5.1 Unscrew screws on the cylinder head in the sequence -10 to 1- .
2. 5.2 Remove cylinder head.
