Removing Cylinder Head - Left Cylinder Bank

WARNING: This page is about a different variant/trim than selected.

Remove coolant pipe -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipe
1. 1.1 Unscrew screws for coolant pipe -1- .
2. 1.2 Remove coolant pipe -2- .

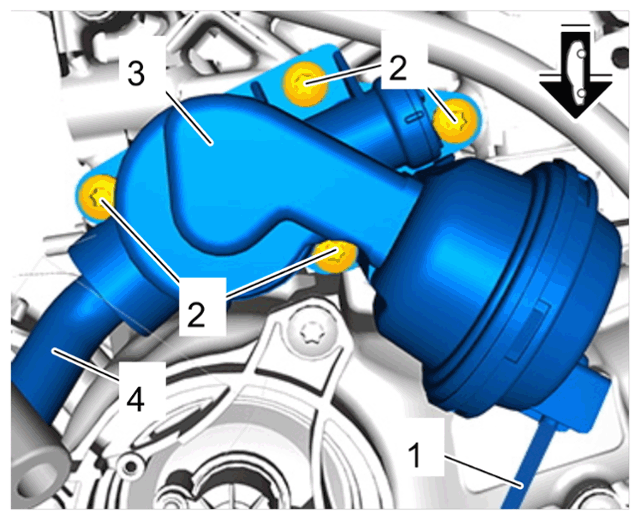

Remove coolant control valve -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant control valve
1. 2.1 Pull off vacuum hose -1- .
2. 2.2 Unscrew screws on coolant control valve -2- and pull coolant control valve -3- off the coolant pipe -4- .

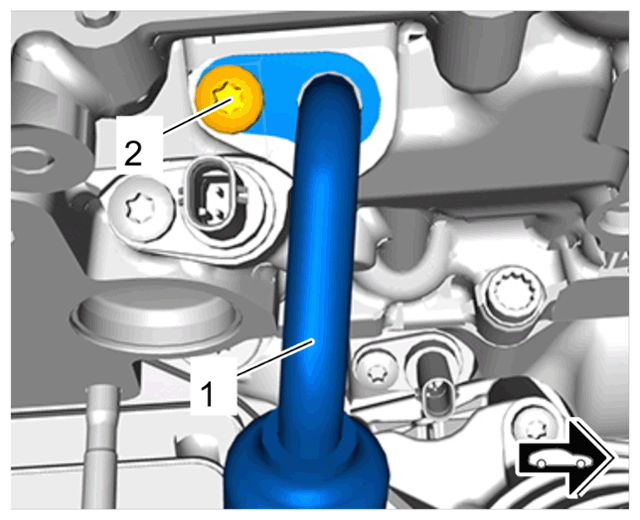

Remove guide for oil dipstick -1- by unscrewing screw -2- and pulling guide for oil dipstick -1- up out of the crankcase cover -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil dipstick guide

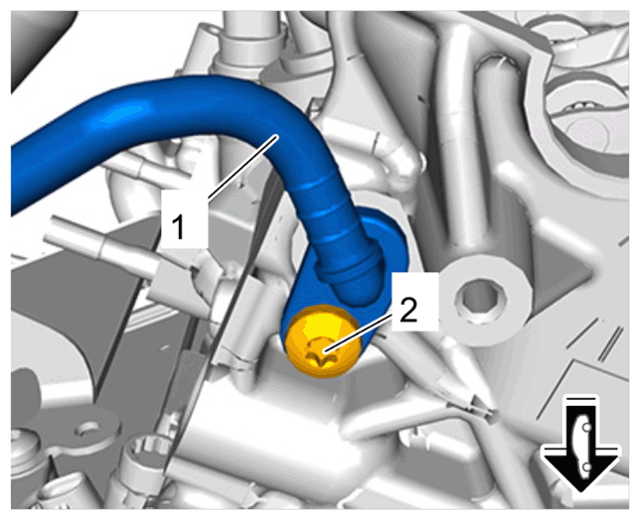

Remove coolant vent line -1- by unscrewing screw -2- and pulling the line connection out of the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant vent line

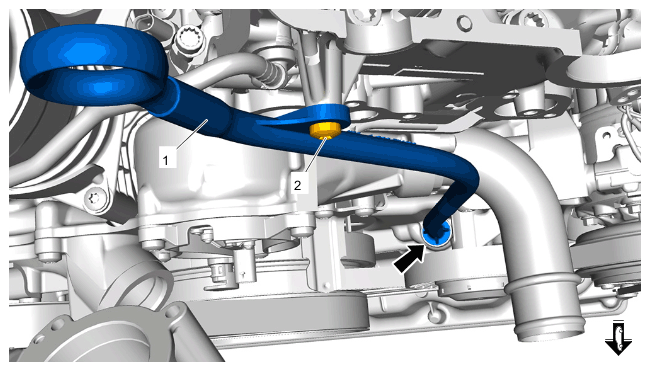

Remove coolant line -1- by unscrewing screw -2- and pulling the line connection out of the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line on left cylinder bank

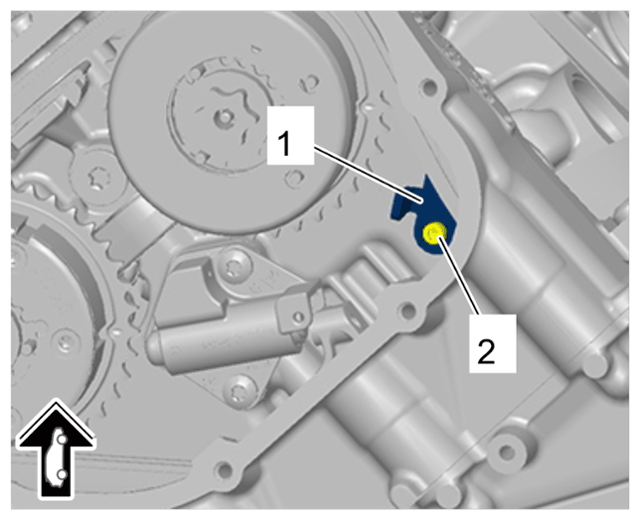

Loosen guide rail -1- from left cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail on left cylinder head
1. 6.1 Unscrew screw -2- .
Remove cylinder head.

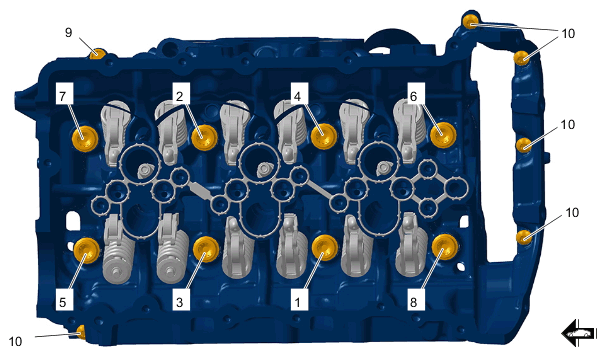

Fig 1: Cylinder Head On Left Cylinder Bank Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head on left cylinder bank
1. 7.1 Unscrew screws on the cylinder head in the sequence -10 to 1- .
2. 7.2 Remove cylinder head.
