Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screw for solenoid hydraulic valve for valve lift adjustment	Replace following removal.	Initial tightening	3 Nm (2 ftlb.)
Screw for solenoid hydraulic valve for valve lift adjustment	Replace following removal.	Torque angle	+ 90°
Screw-type clamp on pressure pipe		Tightening torque	5.5 Nm (4 ftlb.)
Screw for torque support bracket	M8 x 55/(V6 Turbo: M8 x 45)	Tightening torque	23 Nm (17 ftlb.)
Torque support bracket upper part to lower part	M10 x 35	Tightening torque	55 Nm (41 ftlb.)
Ground lines for right cylinder head	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

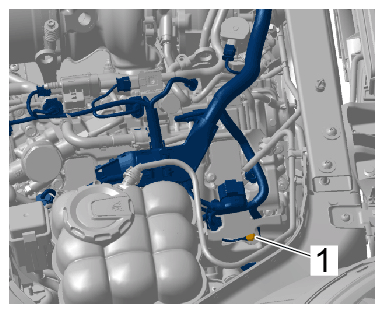

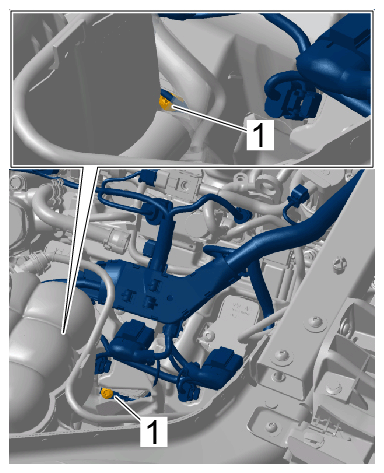

Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Ground line for right cylinder head Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Ground line for right cylinder head, bottom
