Removing Solenoid Hydraulic Valve For Valve Lift Adjustment - V6 Biturbo

Remove torque support bracket -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

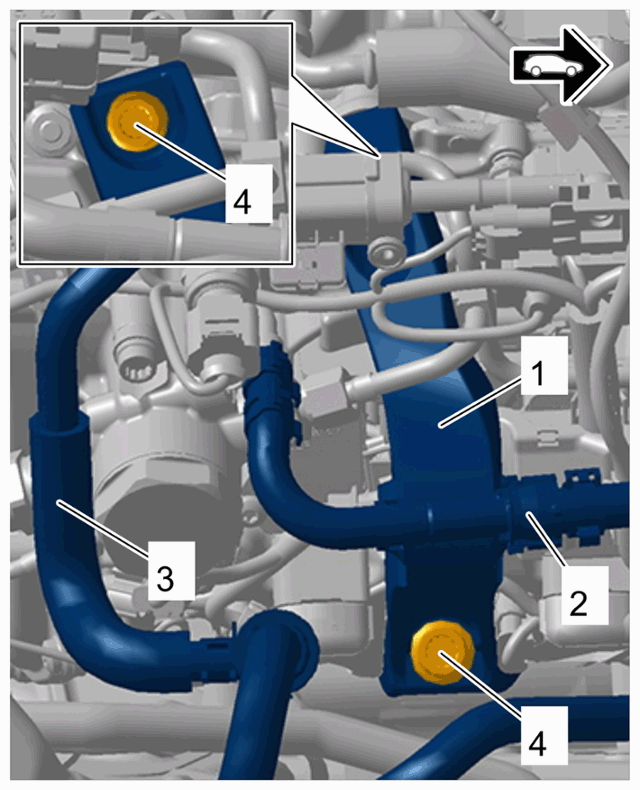

Torque support bracket

1. 1.1  Push hoses -2 and 3-  aside so that the torque support bracket -1-  is accessible.
2. 1.2  Unscrew screws on torque support bracket -4-  .
3. 1.3  Remove torque support bracket -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

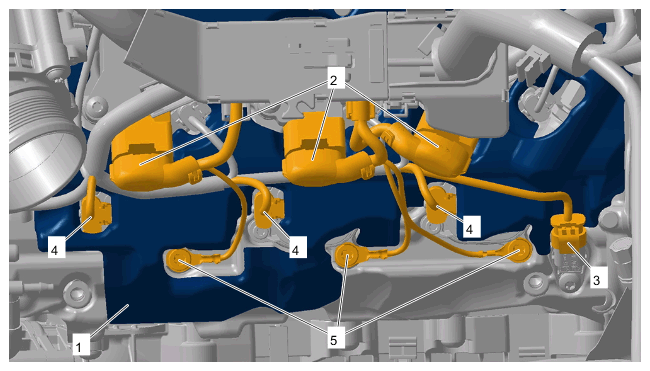

Molded part

1. 2.1  For better access, release and disconnect plug connections for ignition coils -2-  .
2. 2.2  Release and disconnect electric plug connection for knock sensor -3-  .
3. 2.3  Release and disconnect electric plug connections for solenoid hydraulic valves for valve lift adjustment -4-  .
4. 2.4  Unscrew screws for ground lines -5-  and move ground lines aside.
5. 2.5  Lift up molded part -1-  for easier access to the solenoid hydraulic valve for valve lift adjustment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

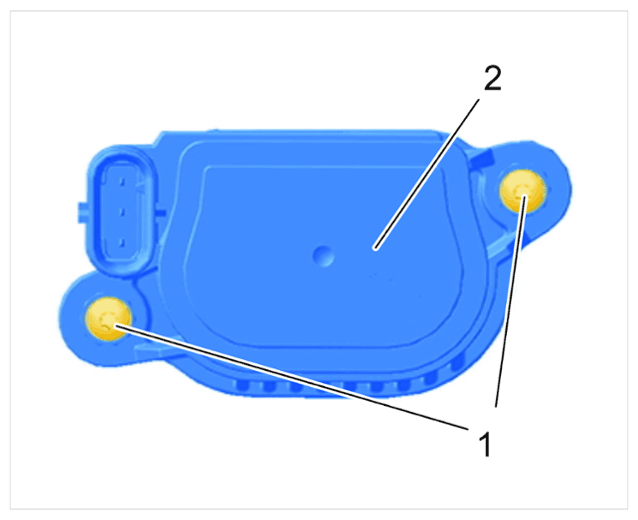

Solenoid hydraulic valve for valve lift adjustment

1. 3.1  Unscrew screws on solenoid hydraulic valve for valve lift adjustment -1-  .
2. 3.2  Remove solenoid hydraulic valve for valve lift adjustment -2-  .
