Removing Lower Chain Housing Cover (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

Unscrew upper screws securing lower chain housing cover -1- to both cylinder banks.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

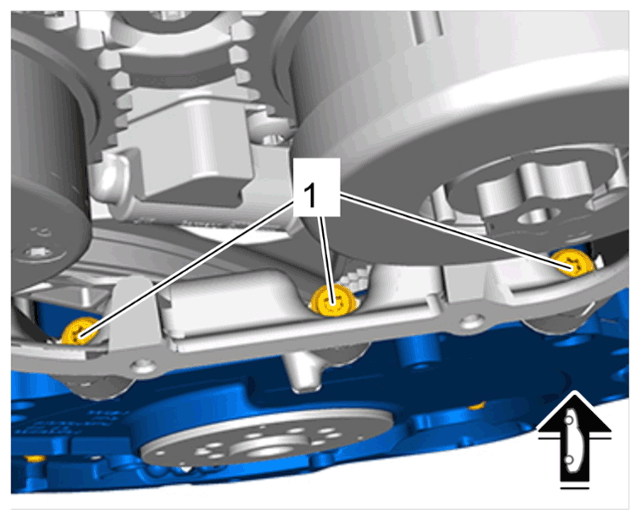

Upper screws on lower chain housing cover
Remove lower chain housing cover -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

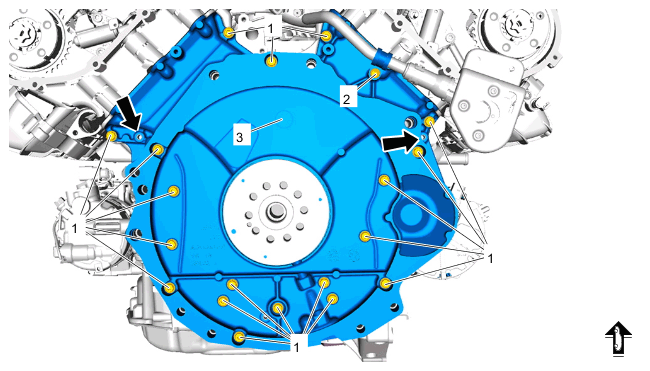

Lower chain housing cover
1. 2.1 Unscrew screw on coolant line holder -2- .
2. 2.2 Unscrew screws on lower chain housing cover -1- .
3. 2.3 Screw one screw into each of the threaded bores -Arrows- by hand.
4. 2.4 Tighten screws carefully and uniformly in order to loosen the lower chain housing cover -3- from the bonding.
5. 2.5 Remove lower chain housing cover -3- .
6. 2.6 Unscrew screws used for loosening from the lower chain housing cover -3- .
Remove crankshaft sealing ring.
> 135955 REPLACE CRANKSHAFT SEALING RING (FLYWHEEL SIDE)
