Removing Camshafts

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove locking tools -2 to 5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

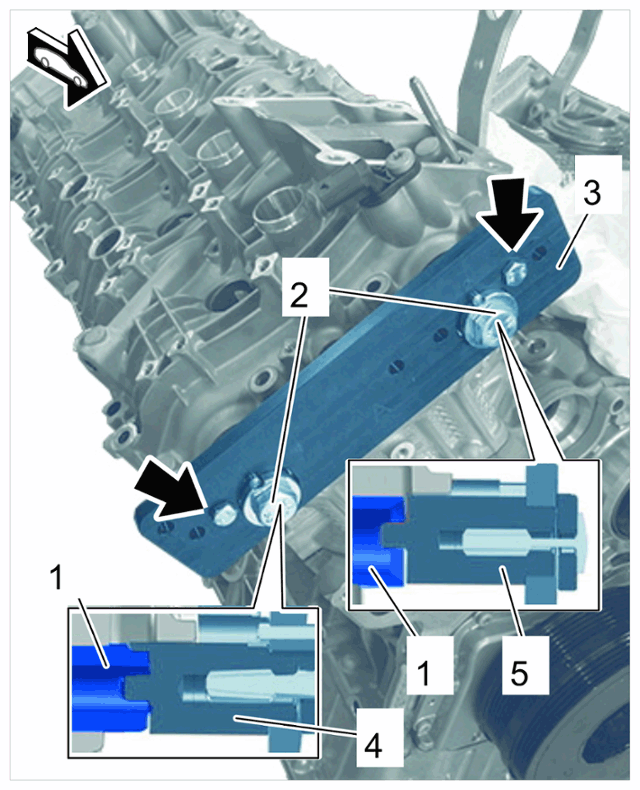

   Camshaft clamps

   Information

   The camshaft bearing covers and the corresponding installation positions are numbered and do not have to be marked.

2. Remove camshafts -5 and 6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

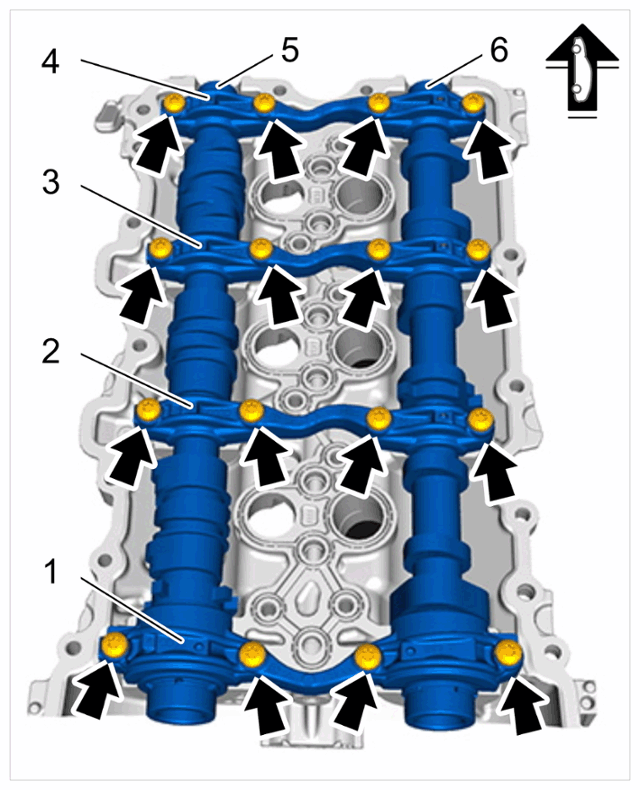

   Camshaft bearing covers

   1. 2.1  Unscrew screws on camshaft bearing covers -Arrows-  .
   2. 2.2  Remove camshaft bearing covers -1 to 4-  and set them down on a suitable base.
   3. 2.3  Remove camshafts -5 and 6-  and set them down on a suitable base.
