Install Camshafts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

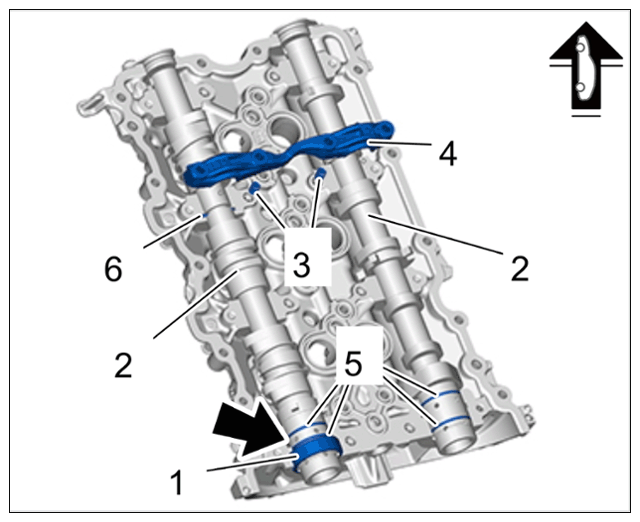

Positioning camshafts

1. 1.1  Insert camshafts -2-  at the required positions into the camshaft bearing frame.

   Make sure that the gaps on the plain compression rings -5-  are facing up or down, never to the side.

   Make sure that the plain bearing -1-  is fitted as far as it will go against the cylinder head cover.

   Make sure that the thrust washer -6-  is inserted.

2. 1.2  Make sure that each camshaft bearing cove. -4-  is fitted with two tensioning sleeves -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

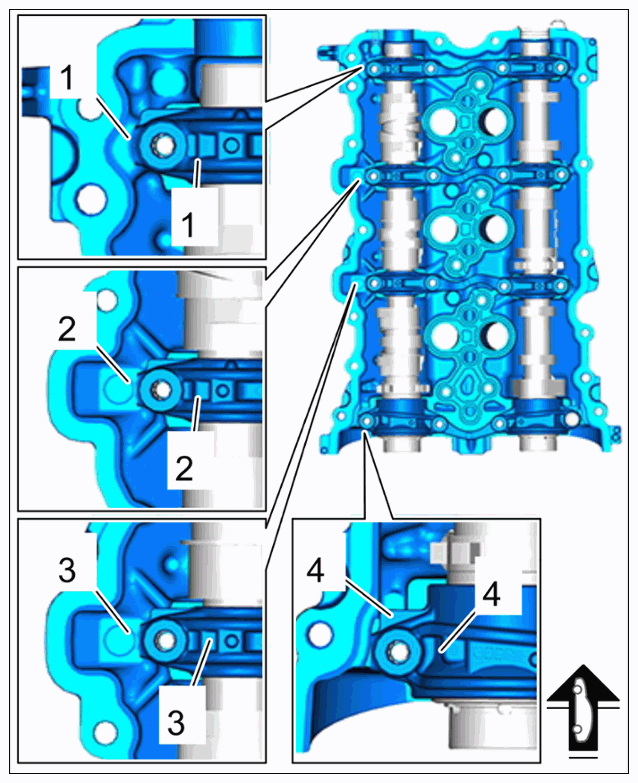

Identification of camshaft bearing covers

1. 2.1  Position camshaft bearing covers -1 to 4-  according to the marking. > Identification of camshaft bearing covers  Make sure that the tensioning sleeves engage in the bores of the cylinder head cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

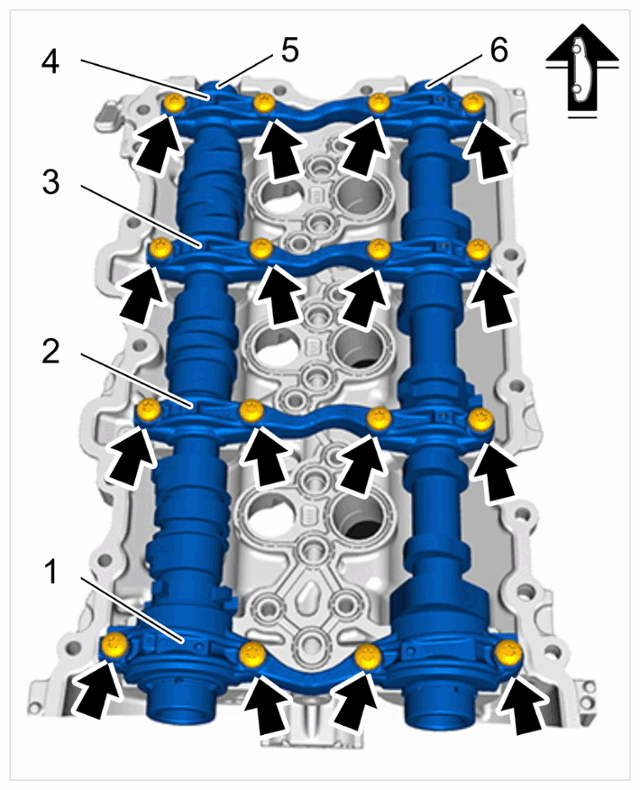

Camshaft bearing covers

1. 3.1  Replace camshaft bearing cover screws -Arrows-  .
2. 3.2 Fit new  camshaft bearing cover screws -Arrows-  and tighten them.

   > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

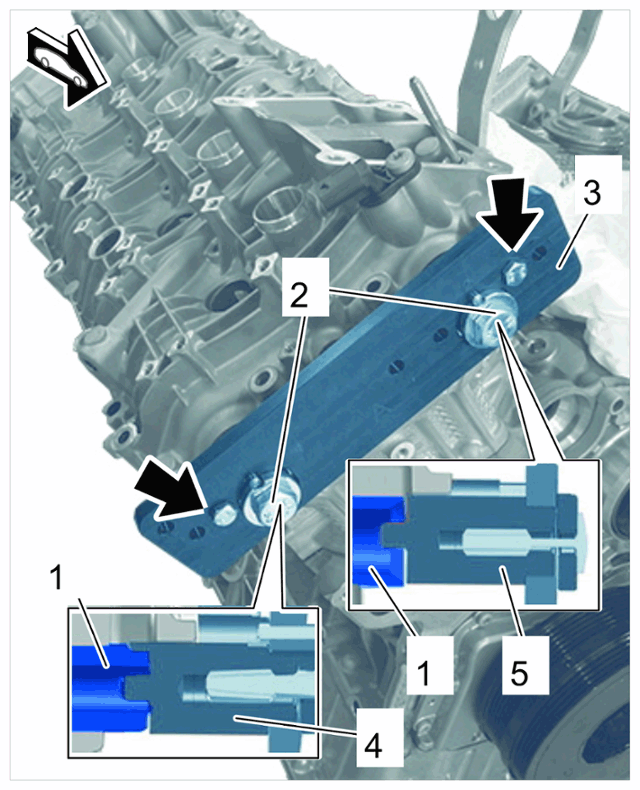

Camshaft clamps

Information

The camshaft clamp must be easy to insert and must not be fitted using a striking tool.

1. 4.1  Align camshafts -1-  and insert > T40331 - camshaft clamps /1,/4 and/5  with the inscription "A" facing away from the engine.
2. 4.2  Secure > T40331 - camshaft clamps /1,/4/5  with > T40331 - camshaft clamps /9  .
3. 4.3  > T40331 - Camshaft clamps  /9  must be screwed in by hand.
4. 4.4  Tighten screws on the camshaft clamps to 9 Nm (6.5 ftlb.)  .
