Checking Timing Of Camshafts

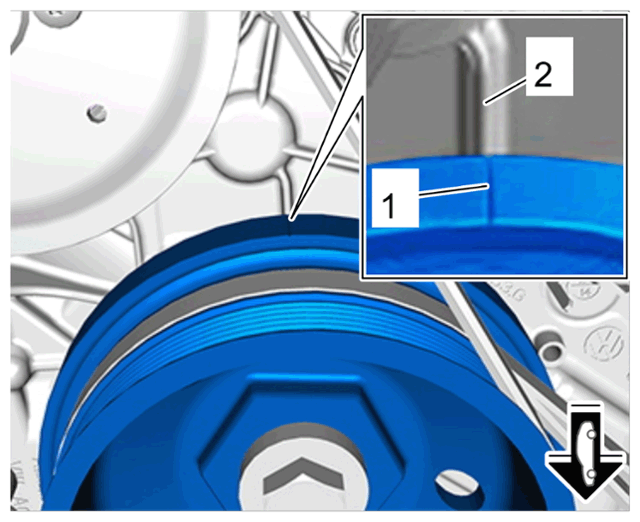

- Turn the crankshaft clockwise until the marking on the vibration damper -1-
is positioned at TDC -2-
.
TDC marking on vibration dan per

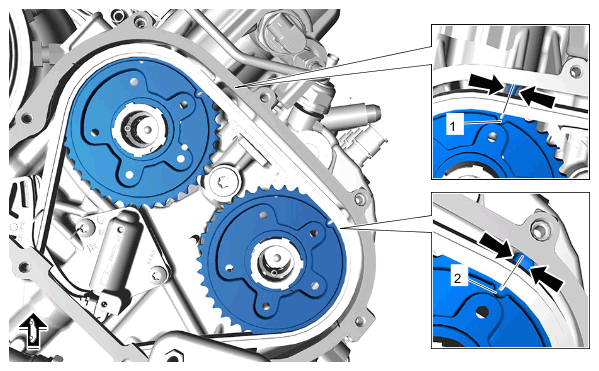

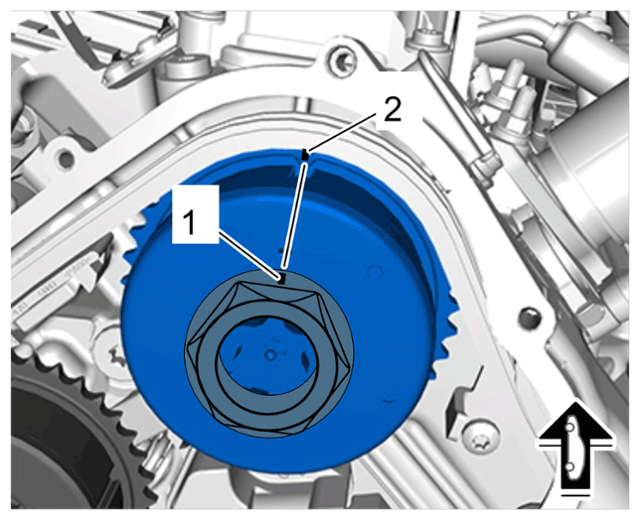

- The markings on the camshaft actuators (cylinder bank 1) -1 and 2-
must be aligned with the reference points on the camshaft housing -Arrows-
. Turn the crankshaft one further turn clockwise if necessary.
Markings on camshaft actuator (cylinder bank 1)

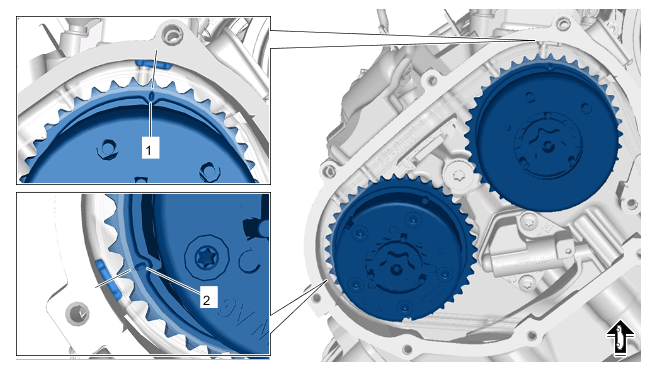

- The markings on the camshaft actuators (cylinder bank 2) -1 and 2-
must be aligned with the reference points -Lines-
on the camshaft housing.
Markings on camshaft actuator (cylinder bank 2)
- Remove stoppers on camshafts -1-
.
Stoppers on camshafts

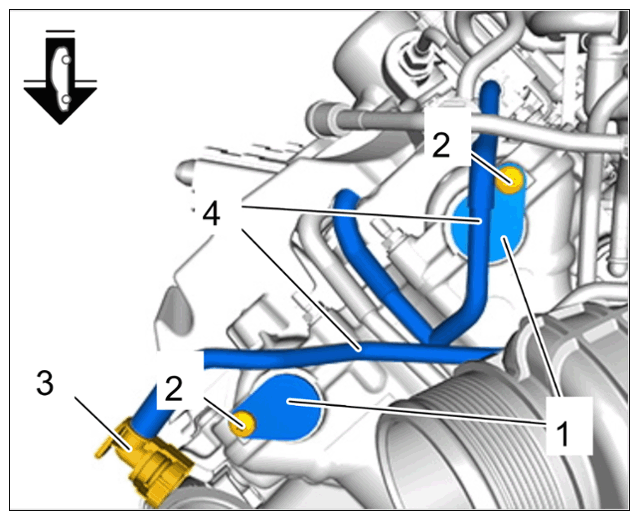

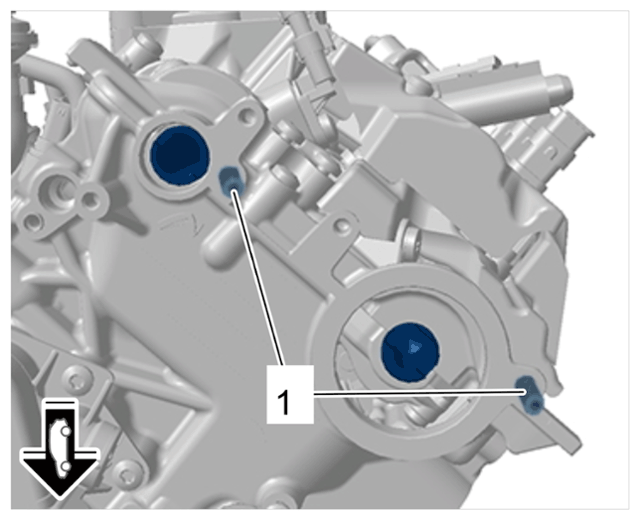

- 4.1 Release and disconnect quick connector -3- .

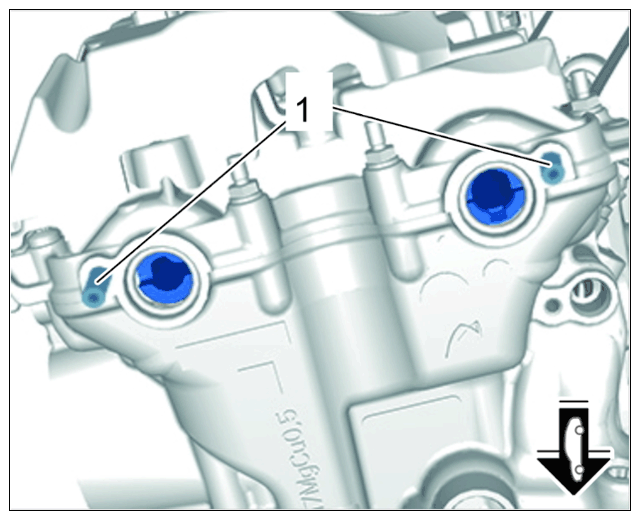

- 4.2 Move vacuum hoses -4- aside so that the stoppers on the camshafts -1- are accessible.
- 4.3 Unscrew screws -2- .
- 4.4 Remove stoppers on camshafts -1- .
- Screw adapter T40331/2 -1-
from > T40331 - camshaft clamp
tool kit into the camshaft housing on cylinder bank 1 and tighten to 9 Nm (6.5 ftlb.)
.
Adapter on camshaft housing, cylinder bank 1
- Screw adapter T40331/3 -1-
from > T40331 - camshaft clamp
tool kit into the camshaft housing on cylinder bank 2 and tighten to 9 Nm (6.5 ftlb.)
.
Adapter on camshaft housing, cylinder bank 2
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.
Information
It may be necessary for another person to carefully position the camshafts at the actuators using > T90001 - counterhold tool and > VAS 261 001 - Ring wrench insert, a/f 41 .
- Fit > T40331 - camshaft clamp
.
- 7.1
Insert > T40331 - camshaft clamp
.
Cylinder bank 1
Camshaft clamps on cylinder bank 1

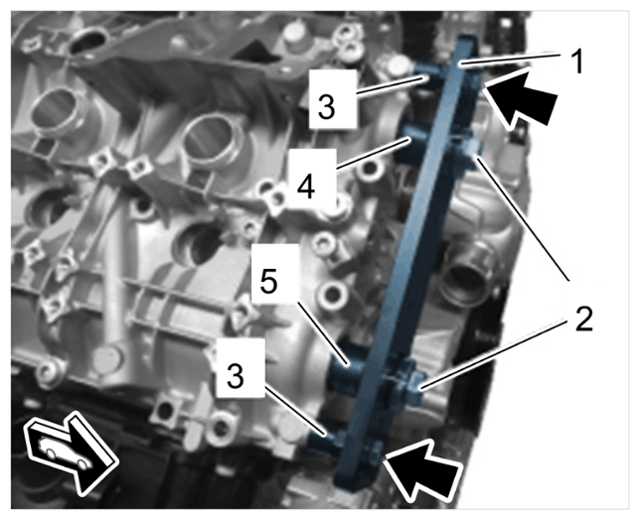

1 T40331/1 - The letter "A" must be facing you 2 T40331/9 3 T40331/2 4 T40331/5 - Exhaust camshaft 5 T40331/4 - Intake camshaft - 7.1.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamp -Arrows- to 9 Nm (6.5 ftlb.) .
- 7.2
Cylinder bank 2
Camshaft clamps on cylinder bank 2

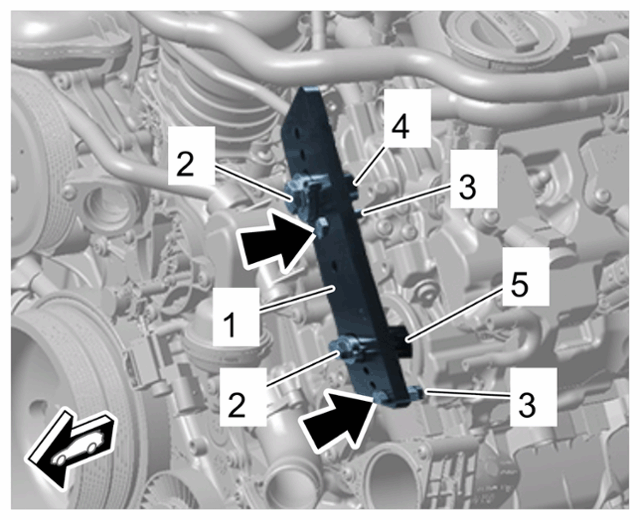

1 T40331/1 - The letter "B" must be facing you 2 T40331/9 3 T40331/3 4 T40331/5 - Exhaust camshaft 5 T40331/6 - Intake camshaft - 7.2.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamp -Arrows- to 9 Nm (6.5 ftlb.) .
- 7.1
Insert > T40331 - camshaft clamp
.
- Secure the crankshaft.
Screw plug for crankshaft

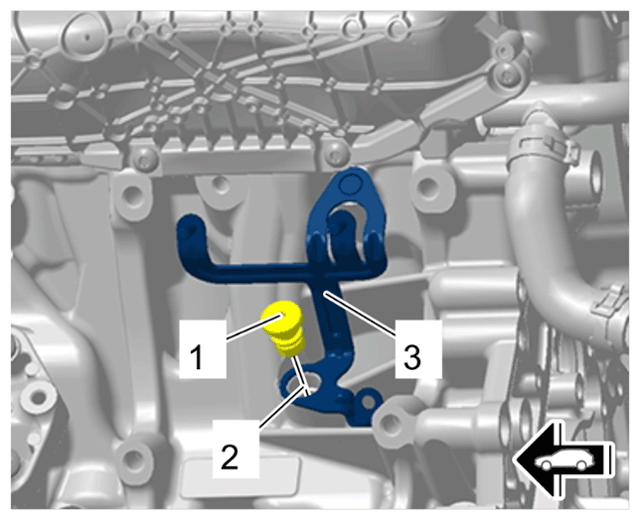

- 8.1 Unscrew screw plug -1- from the bore -2- and remove vacuum reservoir holder -3- .
- 8.2
Screw > T40069 - locking pin
into the bore -2-
by hand.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 8.3 Tighten > T40069 - locking pin to 20 Nm (15 ftlb.) .
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- Do not use force when fitting the staking tool.
- Make sure that the gap is equal on both sides.
- When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- The engine must be exactly at top dead center.
- The opposite cylinder must be at ignition TDC.
- If the staking tools can be inserted as described, the timing is OK.
If the staking tools cannot be inserted as described, the timing must be set.
Information
The pictures shown in this document may differ from the original.
If the locking tools cannot be inserted as described:
- Remove all tools.
- Fit > VAS 261 001 - ring spanner insert, a/f 41
with > T90001 - counter-hold tool
on the camshaft actuator.

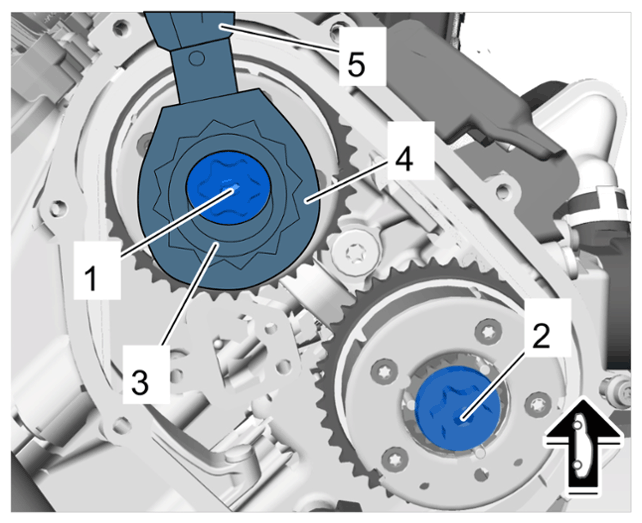

The > T90001 - counterhold tool can only be inserted at one position. To do this, the markings on the camshaft actuator -1- and chain housing -2- must be aligned.
Special tool T90001 on camshaft actuator
Information
Never use the camshaft clamps -T40331- as a counterhold tool for loosening the camshaft controllers.
- Release camshaft actuator -1-
.
Camshaft actuator

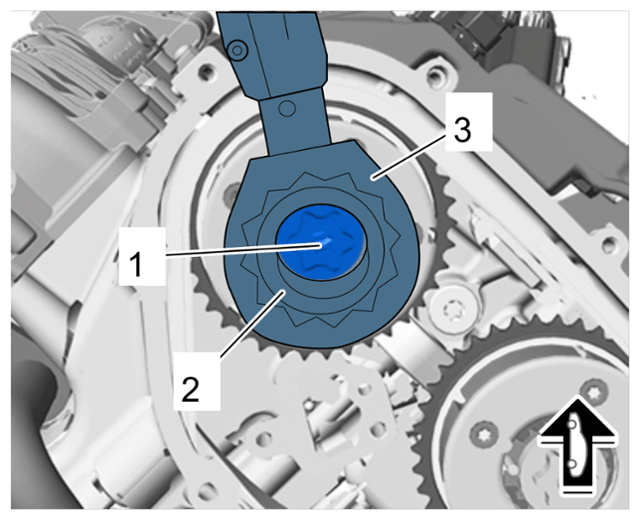

- 3.1 Hold camshaft actuator -1- with > VAS 261 001 - ring insertion tool SW41-2- and > T90001 - counterholder-3- and loosen half a turn with > T90000 - socket wrench E24 .
- Screw adapter T40331/2 -1-
from > T40331 - camshaft clamp
tool kit into the camshaft housing on cylinder bank 1 and tighten to 9 Nm (6.5 ftlb.)
.
Adapter on camshaft housing, cylinder bank 1
- Screw adapter T40331/3 -1-
from camshaft clamp tool kit into the > T40331 - camshaft housing
on cylinder bank 2 and tighten to 9 Nm (6.5 ftlb.)
.
Adapter on camshaft housing, cylinder bank 2
Information
The camshaft clamp must be easy to insert and must not be fitted using a striking tool.
- Fit > T40331 - camshaft clamp
.
Information
It may be necessary for another person to carefully position the camshafts at the actuators using > T90001 - counterhold tool and > VAS 261 001 - Ring wrench insert, a/f 41 .
- 6.1
Insert > T40331 - camshaft clamp
.
Cylinder bank 1
Camshaft clamps on cylinder bank 1
1 T40331/1 - The letter "A" must be facing you. 2 T40331/9 3 T40331/2 4 T40331/5 - Exhaust camshaft 5 T40331/4 - Intake camshaft - 6.1.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.) .
- 6.2
Cylinder bank 2
Camshaft clamps on cylinder bank 2
1 T40331/1 - The letter "B" must be facing you. 2 T40331/9 3 T40331/3 4 T40331/5 - Exhaust camshaft 5 T40331/6 - Intake camshaft - 6.2.1 T40331/9 -2- must be screwed in by hand. Tighten screws on the camshaft clamps -Arrows- to 9 Nm (6.5 ftlb.) .
- 6.1
Insert > T40331 - camshaft clamp
.
- Secure the crankshaft.
Screw plug for crankshaft
- 7.1 Unscrew screw plug -1- .
- 7.2 Remove holder for vacuum reservoir -3- .
- 7.3
Screw > T40069 - locking pin
into the bore -2-
by hand.
Turn the crankshaft back and forth slightly to do this, if necessary.
- 7.4 Tighten > T40069 - locking pin to 20 Nm (15 ftlb.) .
Information
The markings on the camshaft actuators must be aligned with the reference points on the camshaft housing.
Information
Camshaft actuator must not be disassembled!
Friction plate in camshaft actuator
- The camshaft actuator must never be disassembled.

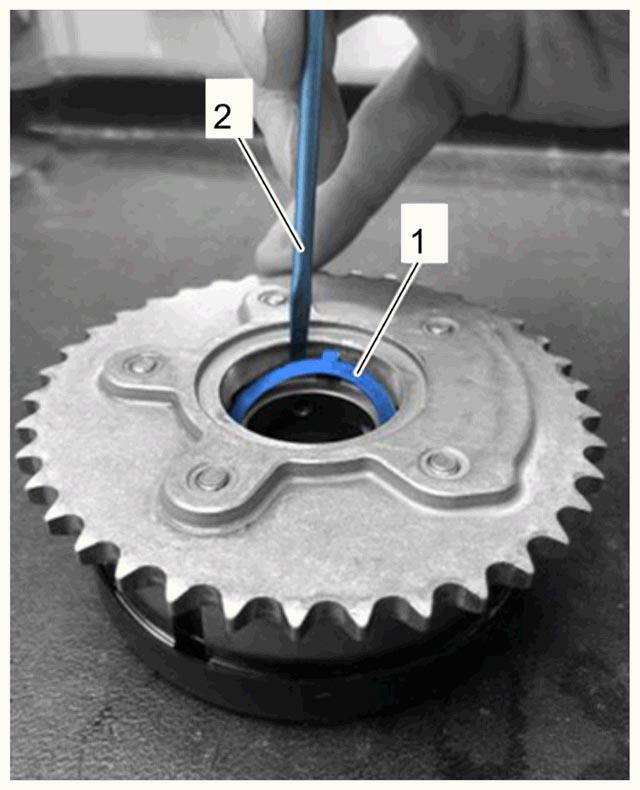

- To replace the friction plate -1- , lever it out carefully using a small slotted screwdriver -2- .
- The markings on the camshaft actuator (cylinder bank 1) -1 and 2-
must be aligned with the corresponding markings on the camshaft housing -Arrows-
.
If the markings on the camshaft actuator -1 and 2- are not aligned with the corresponding markings on the camshaft housing -Arrows- the camshaft actuators must be removed and positioned correctly.
Markings on camshaft actuator (cylinder bank 1)
Information
The markings on the camshaft actuators must be aligned with the reference points on the camshaft housing.
Information
Camshaft actuator must not be disassembled!
Friction plate in camshaft actuator
- The camshaft actuator must never be disassembled.
- To replace the friction plate -1- , lever it out carefully using a small slotted screwdriver -2- .
- The markings on the camshaft actuator (cylinder bank 2) -1 and 2-
must be aligned with the corresponding markings on the camshaft housing -Lines-
.
If the markings on the camshaft actuator -1 and 2- are not aligned with the corresponding markings on the camshaft housing -Lines- the camshaft actuators must be removed and positioned correctly.
Markings on camshaft actuator (cylinder bank 2)
Information
You will need a second mechanic to help you with this step.
- Tighten camshaft actuator -1 and 2-
.
Tightening of camshaft actuator

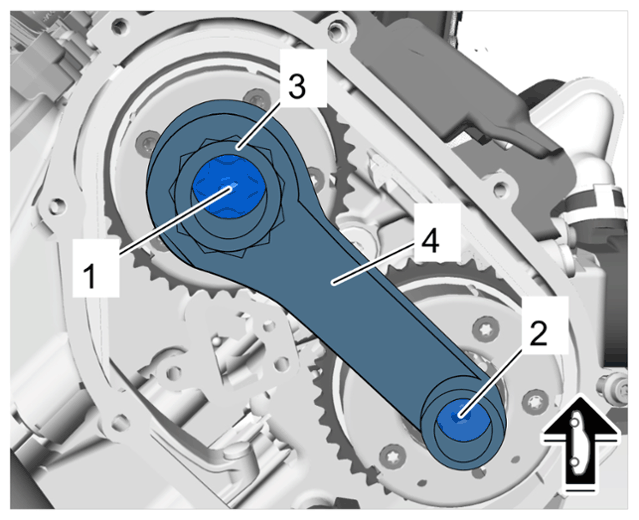

- 10.1 A second mechanic must use > V.A.G 1331A - torque wrench 6-50 Nm (4.5-37 ftlb.)-5- with > VAS 261 001 -ring spanner insert, a/f 41-4- and > T90001 - counter-hold tool-3- to pre-tension the camshaft actuators to 30 Nm by turning them anti-clockwise and holding them securely.
- 10.2
Tighten camshaft actuators -1 and 2-
in the following sequence. (Camshaft actuator is still pre-tensioned)
- 10.2.1
Tighten intake camshaft actuator -2-
.
> Initial tightening 30 Nm (22 ftlb.)
- 10.2.2
Tighten exhaust camshaft actuator -1-
.
> Initial tightening 30 Nm (22 ftlb.)
NOTIFICATION
Timing not set correctly
- Risk of engine damage
- Rough running engine
- Loss of engine power
- Do not use force when fitting the staking tool.
- Make sure that the gap is equal on both sides.
- When inserting the staking tools, do not use force to turn the camshafts against any resistance.
- The engine must be exactly at top dead center.
- The opposite cylinder must be at ignition TDC.
- 10.2.1
Tighten intake camshaft actuator -2-
.
- Remove staking tools, perform two revolutions of the engine and check the timing again.
- 11.1 Secure the crankshaft using locking pin.
- 11.2 A second mechanic must use > V.A.G 1331A - torque wrench 6-50 Nm (4.5-37 ftlb.) with > VAS 261 001 - ring spanner insert, a/f 41 and > T90001 - counter-hold tool to pre-tension the camshaft actuators to 30 Nm (22 ftlb.) by turning them anti-clockwise and holding them securely.
- 11.3 The camshaft fixing pin mutt insert easily. Do not insert the camshaft fixing pin using a hammer.
- 11.4
If the camshaft fixing pin cannot be inserted.
- 11.4.1 Remove camshaft fixing pin and locking pin on the crankshaft.
- 11.4.2 Plug the camshaft fixing pin as far into the camshafts as it will go. Turn the crankshaft slightly if necessary.
- 11.4.3 Loosen actuators by half a turn using the special tools.
- 11.4.4 Fix crankshaft in place with the locking pin and repeat the settings.
- Tighten camshaft actuator -1 and 2-
.
Final tightening of camshaft actuator
- 12.1 Fit > T90001 - counter-hold tool-3- and > T90002 - counter-hold tool-4- on the exhaust camshaft actuator -1- .
- 12.2
Support > T90002 - counter-hold tool-4-
on the intake camshaft actuator -2-
.
Turn the crankshaft slightly to do this if necessary. (Only in direction of rotation of engine)
- 12.3
Tighten exhaust camshaft actuator -1-
.
> Final tightening + 35°
- 12.4 Fit > T90001 - counter-hold tool-3- and > T90002 - counter-hold tool-4- on the intake camshaft actuator -2- .
- 12.5
Support > T90002 - counter-hold tool-4-
on the exhaust camshaft actuator -1-
.
Turn the crankshaft slightly to do this if necessary. (only turn clockwise)
- 12.6
Tighten intake camshaft actuator -1-
.
> Final tightening + 35°
- 12.7 Remove > T90001 - counter-hold tool-3- and > T90002 - counter-hold tool-4- .
