Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper chain housing cover.

    > 153319 REMOVING AND INSTALLING UPPER CHAIN HOUSING COVER (V6 TURBO)

  2. Remove brake booster vacuum pump.

    > Refer to WM, 477619 REMOVING AND INSTALLING BRAKE BOOSTER VACUUM PUMP (V6 BITURBO)

  3. Remove center intake-air distributor.

    > WM, 244619 REMOVING AND INSTALLING CENTRE INTAKE-AIR DISTRIBUTOR (V6 BITURBO)

  4. Remove engine.

    > 100127 REMOVING AND MOUNTING ENGINE

  5. Remove left engine carrier -1-  .

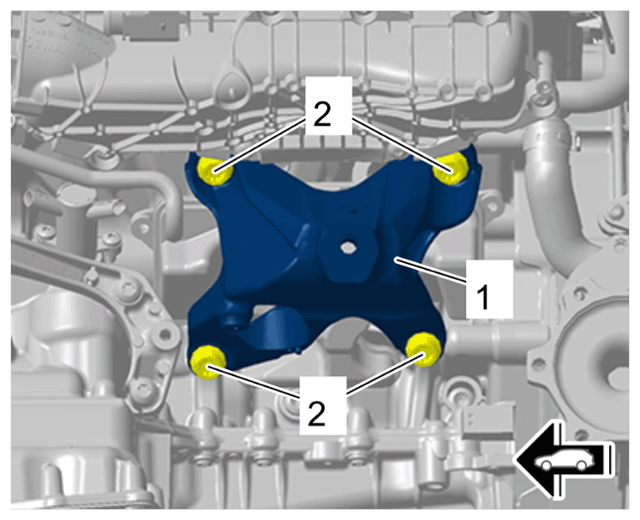

    G15210710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left engine carrier

    1. 5.1  Unscrew and remove screws -2-  .
    2. 5.2  Remove left engine carrier -1-  .
  6. Remove vacuum reservoir -1-  .

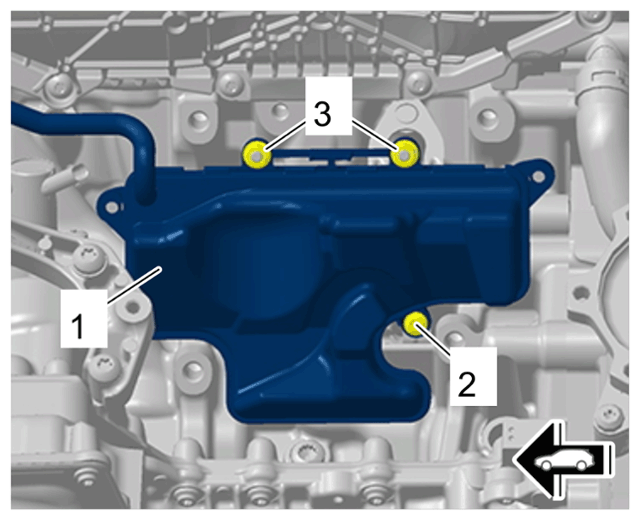

    G15210711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum reservoir

    1. 6.1  Unscrew and remove screws -2-  .
    2. 6.2  Unscrew nuts -3-  .
    3. 6.3  Remove vacuum reservoir -1-  and set it aside.
  7. Secure engine to assembly support.

    > 100113 SECURING ENGINE ON ASSEMBLY SUPPORT (V6 TURBO)
