Removing Balance Shaft Bearing
WARNING: This page is about a different variant/trim than selected.
- Prepare the > T40395 - insertion tool
.
- 1.1

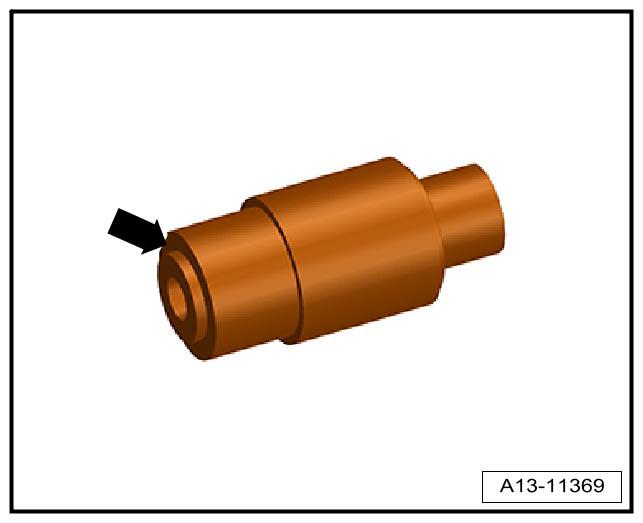

Fit adapter T40395/2
on the roller bearing at the correct side. The chamfer -Arrow-
must be facing the roller bearing.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adapter T40395/2
- 1.2

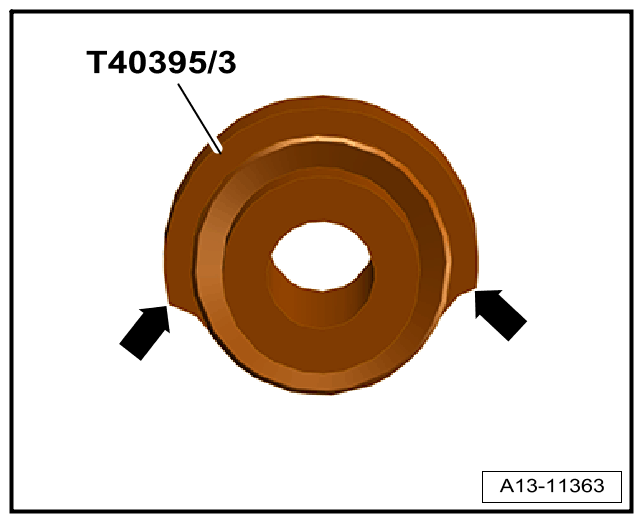

Align adapter -T40395/3-
. The side without the chamfer -Arrows-
points downwards
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adapter T40395/3

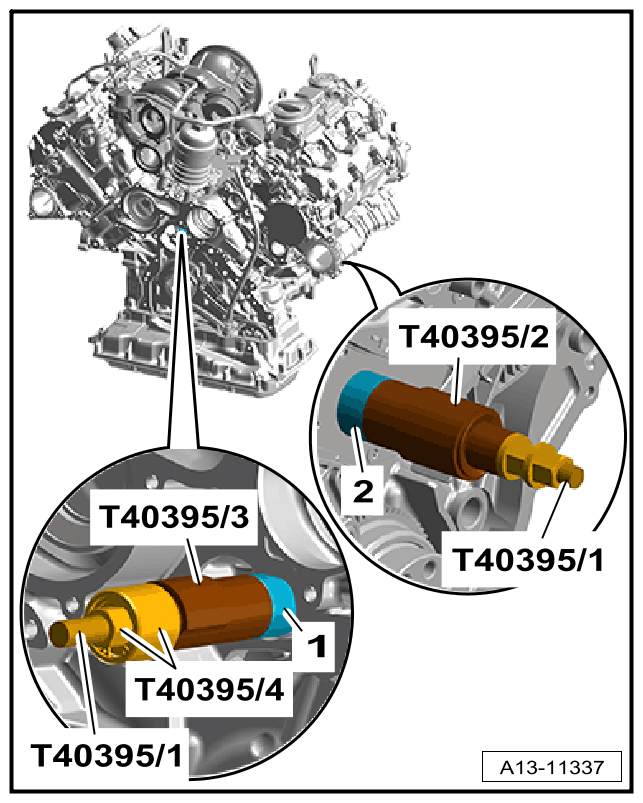

- Pull the roller bearing inward at the front -1-
and rear -2-
using the spindle -T40395/1-
. adapter -T40395/2-
and adapter -T40395/3-
as far as it will go by turning the nut -T40395/4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Using special tool T40395
