Installing Balance Shaft Bearing

WARNING: This page is about a different variant/trim than selected.

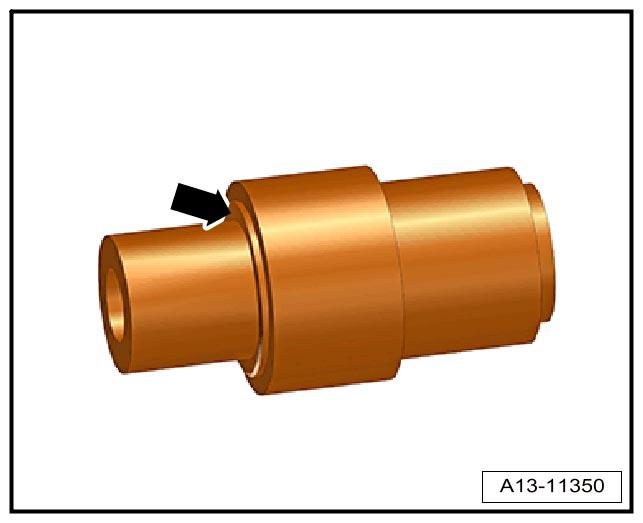

  1. Fit adapter T40395/2  on the roller bearing at the correct side. The chamfer -Arrow-  must be facing the roller bearing and determines the installation depth.
    G15210699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter T40395/2

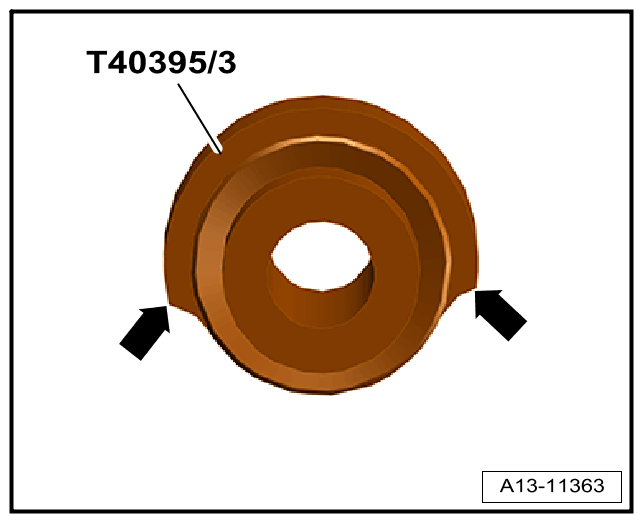

  2. Align adapter -T40395/3-  . The side without the chamfer -Arrows-  points downwards
    G15210700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter T40395/3

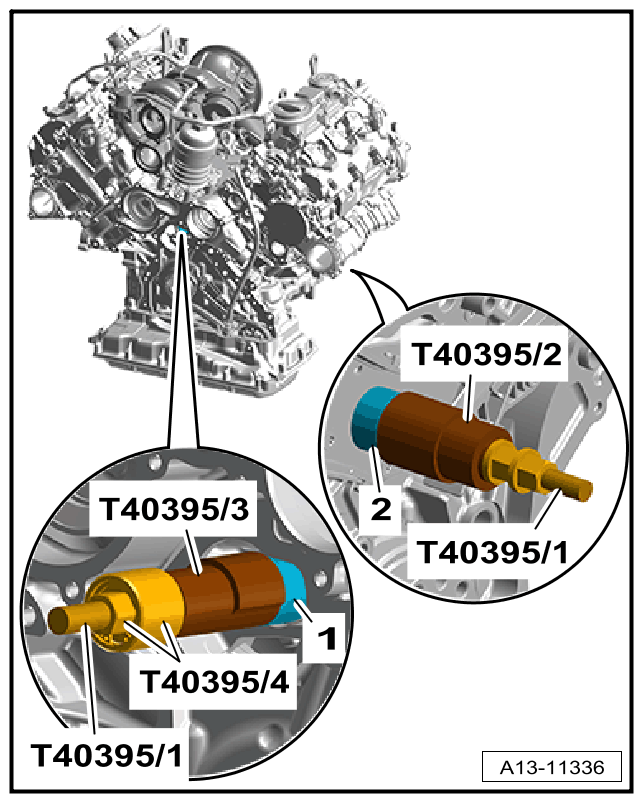

  3. Insert roller bearing at the front -1-  and rear -2-  using the spindle -T40395/1-  , adapter -T40395/2-  and adapter -T40395/3-  as far as it will go by turning the nut -T40395/4-  .
    G15210701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Using special tool T40395
