Removing Balance Shaft (V6 Turbo)

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components

  → Protect components from dirt and contamination.

  → Clean or replace dirty components.

1. Remove balance shaft -3-  .
   1. 1.1  Loosen and unscrew screws -1-  and remove end plate -2-  for balance shaft -3-  .
   2. 1.2  Remove old seal and remove thrust washer -4-  from balance shaft -3-  .
   3. 1.3  Remove balance shaft -3-  for transmission side from the engine block.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

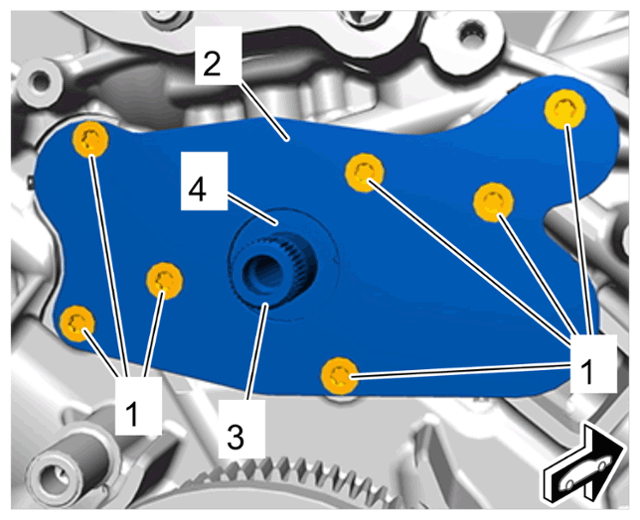

      Balance shaft end plate
