Installing Balance Shaft (V6 Turbo)
WARNING: This page is about a different variant/trim than selected.

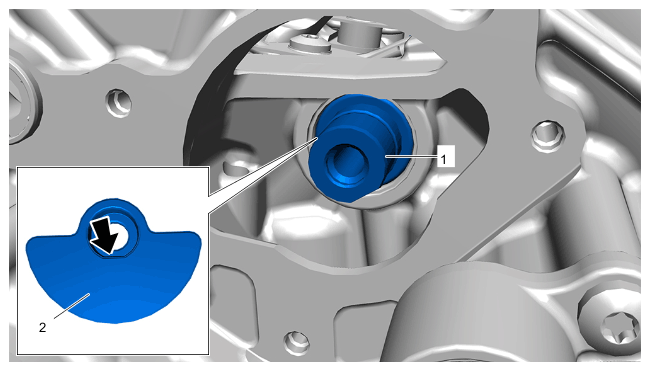

- Move balance shaft -1-
into installation position and attach the balance weight -2-
to the balance shaft The milled surface -Arrow-
on the balance weight must be seated on the milled surface on the balance shaft.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Milled surface of balance weight

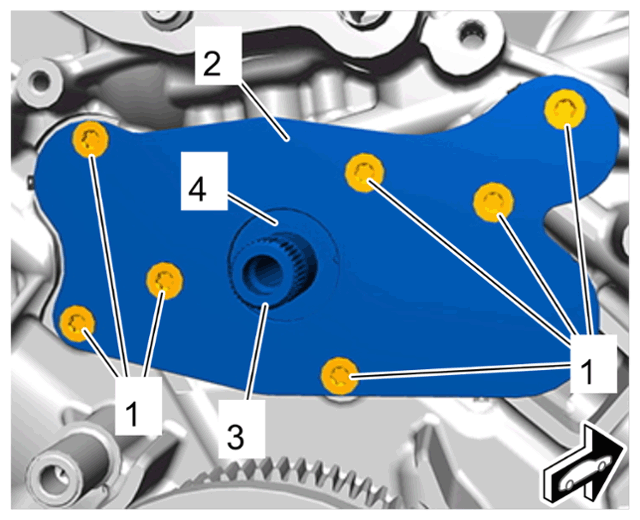

- Fit end plate -2-
for balance shaft -3-
.
- 2.1
Fit new seal for end plate -2-
.
- 2.2
Fit thrust washer -4-
on the balance shaft -3-
.
- 2.3
Position end plate -2-
, fit new
screws -1-
and tighten to > Tightening torque 9 Nm (6.5 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Balance shaft end plate
