Installing drive belt for generator

WARNING: This page is about a different variant/trim than selected.

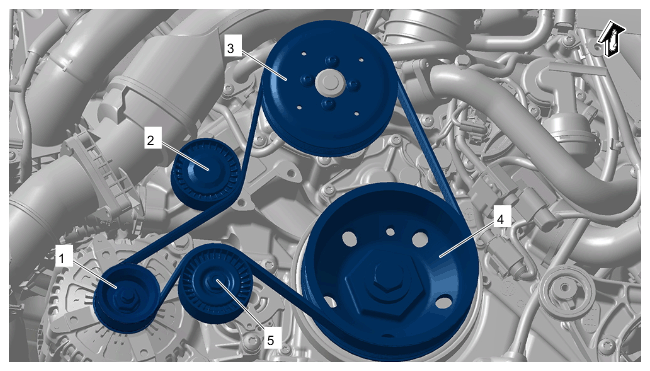

Fig 1: Generator Drive Belt Routing Diagram

G15210682

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of drive belt for generator

1	Generator
2	Deflection roller
3	Coolant pump
4	Vibration damper
5	Tensioning device for drive belt for generator

Fit drive belt for generator -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

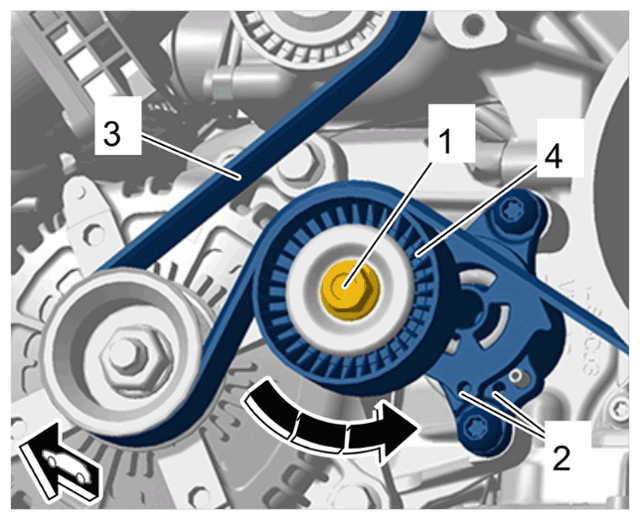

Drive belt for generator
1. 1.1 Fit drive belt for generator -3- on the pulleys and align it along the grooves on the pulleys.
2. 1.2 To tension the drive belt for the generator -3- , swivel the tensioning device -4- anti-clockwise using a ring wrench. -Arrow-
3. 1.3 > T10060A - Locking pin must then be removed from the tensioning device -4- .
4. 1.4 Slowly swivel out the ring wrench to its original position.
5. 1.5 Check that drive belt for generator -3- is seated and tensioned correctly.
