Installing drive belt for air-conditioning compressor

WARNING: This page is about a different variant/trim than selected.

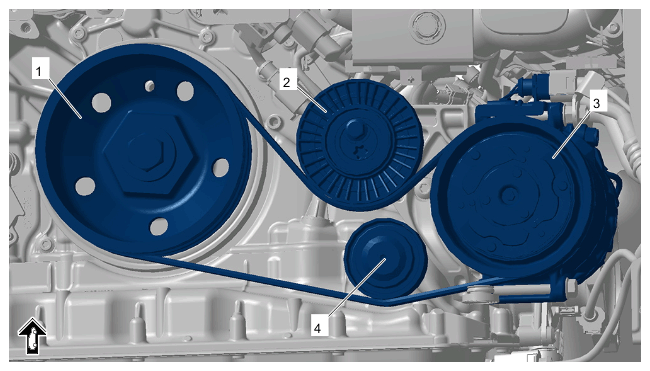

Fig 1: Air-Conditioning Compressor Drive Belt Routing Diagram

G15210680

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of drive belt for air-conditioning compressor

1	Vibration damper
2	Tensioning device for drive belt for air-conditioning compressor
3	Air-conditioning compressor
4	Deflection roller

Fit drive belt for air-conditioning compressor -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

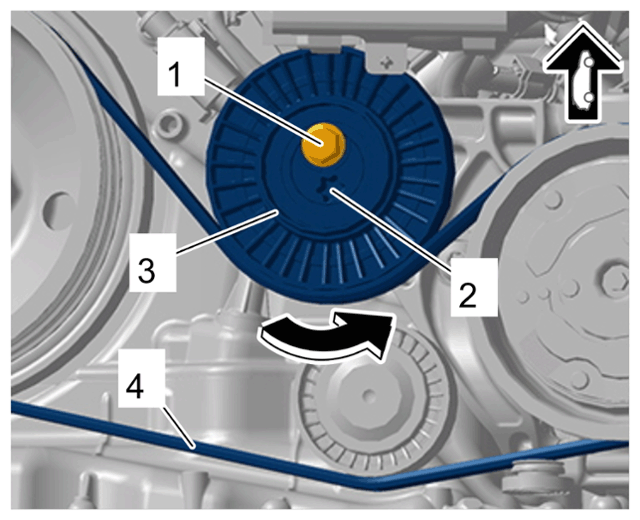

Drive belt
1. 1.1 Fit drive belt for air-conditioning compressor -4- on the pulleys and align it along the grooves on the pulleys.
2. 1.2 To tension the drive belt for the air-conditioning compressor -4- , swivel the tensioning device -3- at the Torx splines -2- as far as it will go anti-clockwise -Arrow- using a TORX T55 socket wrench (the tensioning device -3- must remain tensioned).
3. 1.3 Tighten screw on tensioning roller for air-conditioning compressor -1- to > Tightening torque 25 Nm (19 ftlb.) .
4. 1.4 Check that drive belt for air-conditioning compressor -4- is seated and tensioned correctly.
