Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove belt tensioner (air-conditioning compressor).

    > 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)

  2. Remove deflection roller for V-belt (air-conditioning compressor).

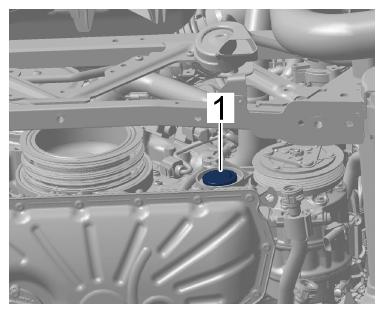

    1. 2.1  Unclip cover on deflection roller -1-  .
      G15210665Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Deflection roller cover

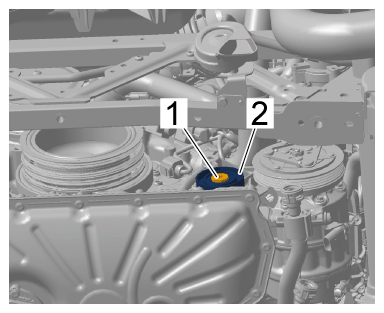

    2. 2.2  Unscrew screw -1-  and remove deflection roller for V-belt (air-conditioning compressor) -2-  .
      G15210666Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Deflection roller for V-belt (air-conditioning compressor)

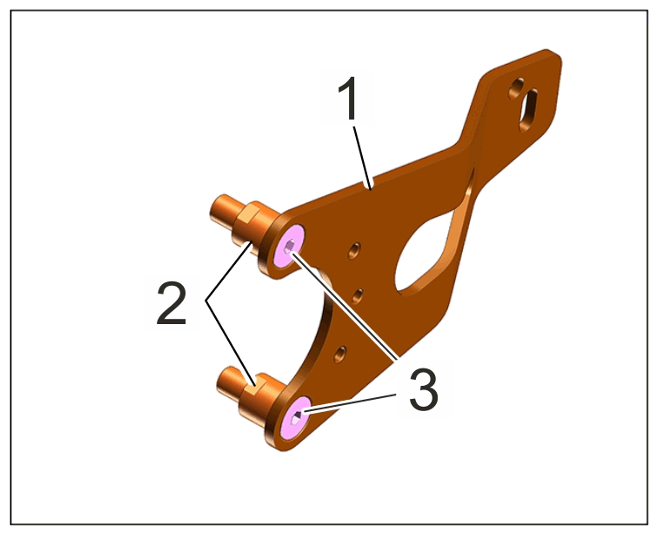

  3. Prepare tool > T40330 - Brace  .
    G15210667Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tool T40330

    1. 3.1  Fit adapter T40330/2 -2-  on brace T40330/1 -1-  .
    2. 3.2  Fit and tighten screws -3-  .
