Install crankshaft sealing ring - belt side
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.

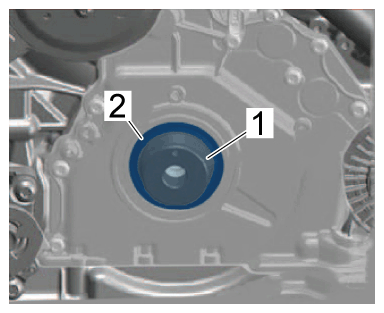

- Fit guide sleeve -1-
from > T40320B - assembly tool
on the crankshaft and install crankshaft sealing ring - belt side -2-
.
Guide sleeve
Information
Leave guide sleeve fitted on the crankshaft.

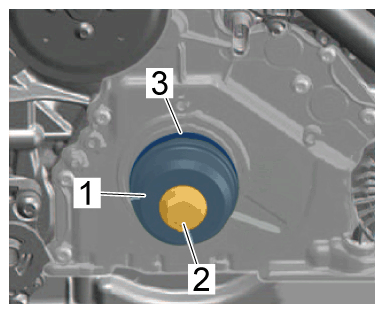

- Install crankshaft sealing ring - belt side -3-
Pressure piece
- 2.1 Fit pressure piece -1- from > T40320B - assembly tool on the crankshaft with vibration damper screw -2- .
- 2.2 Press crankshaft sealing ring - belt side -3- in as far as it will go.
- 2.3 Remove pressure piece -1- and guide sleeve from > T40320B - assembly tool .
