Removing belt tensioner (V6 Turbo)
WARNING: This page is about a different variant/trim than selected.
- Loosen drive belt and remove it from the belt tensioner.
> 137819 REMOVING AND INSTALLING DRIVE BELT (V6 TURBO)

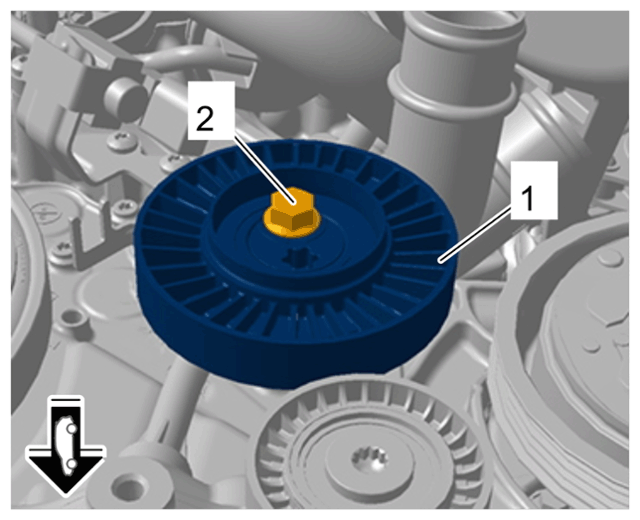

- Remove belt tensioner -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Belt tensioner (air-conditioning compressor)
- 2.1
Unscrew screw -2-
and remove belt tensioner -1-
.
