Measuring Cylinder Bore
WARNING: This page is about a different variant/trim than selected.
- Using the cylinder gauge VAS 6078
, take measurements as shown > Diagram for measuring cylinder bore
at three points in the cylinder, crosswise in transverse direction A
and in longitudinal direction B
.

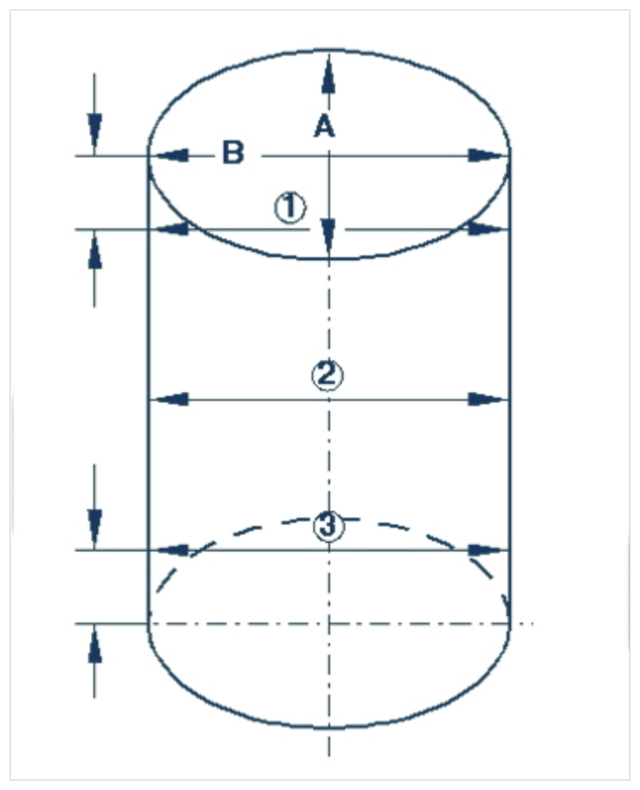

Diagram for measuring cylinder bore
| Cylinder bore | New in mm | Maximum permitted deviation from nominal measurement in mm | Note |
|---|---|---|---|
| Nominal measurement | 84.510 ± 0.005 | 0.08 | Measure cylinder bore depth of 50 mm. |
