Removing Engine Cover
WARNING: This page is about a different variant/trim than selected.
- Remove engine cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

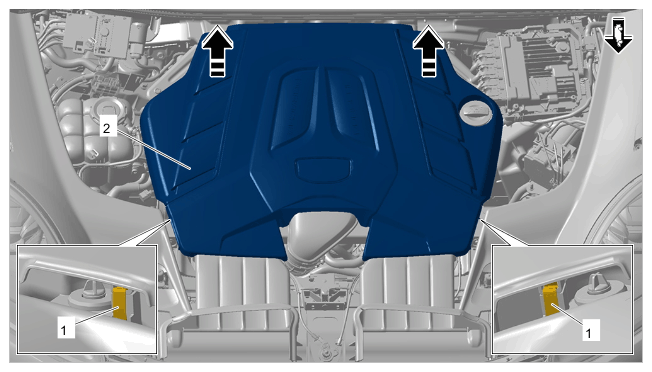

Engine cover
- 1.1
Carefully open clips -1-
using a plastic wedge.
- 1.2
Lift engine cover -2-
up at the front -Arrows-
and pull it out of the guide at the rear.
