Removing Engine Guard
WARNING: This page is about a different variant/trim than selected.
- Remove engine guard -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

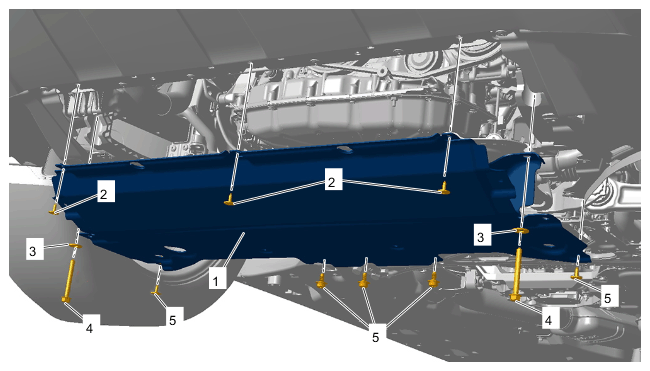

Engine guard
- 1.1
Unscrew engine guard screws -2-
.
- 1.2
Unscrew engine guard screws -4 and 5-
.
- 1.3
Remove engine guard -1-
.
