Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Left side only:
Secure coolant lines to the front axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

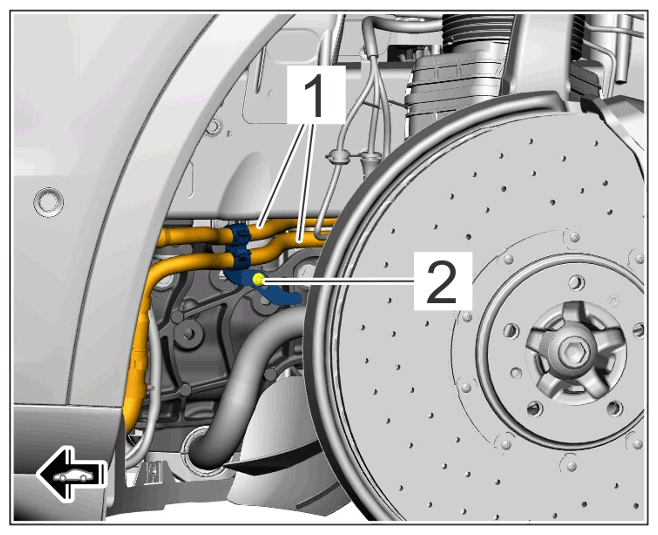

Coolant lines on the front left axle carrier
1. 1.1 Tighten screw -2- .
  Tightening torque: > Tightening torque 9 Nm (6.5 ftlb.)
Secure anti-roll bar on the front axle carrier.
> 407719 REMOVING AND INSTALLING STABILIZER, FRONT

> 407719 REMOVING AND INSTALLING STABILIZER, FRONT [PDCC]
Only for V8 Hybrid:
Install the air-conditioning compressor.

> 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR
Install wheel housing liner.
> Refer to the appropriate service information.
Install front underbody cover.
>Refer to the appropriate service information.
