Removing Engine Mount

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Only right engine mount:
Disconnect ground cable -1- on the engine mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

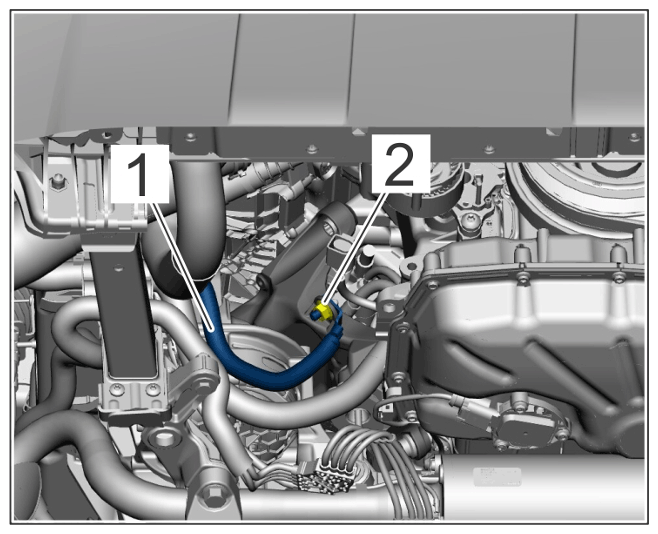

Ground cable on engine mount
1. 1.1 Unscrew nut -2- and remove ground cable -1- .

Loosen engine mount on the front axle carrier.

2.1 Loosen and unscrew bolt securing engine mount to inner front axle carrier with multiple-tooth M10 socket-spanner insert from > VAS 6928 - 39-piece socket set-1- and > T10384 - ratchet spanner SW13-2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

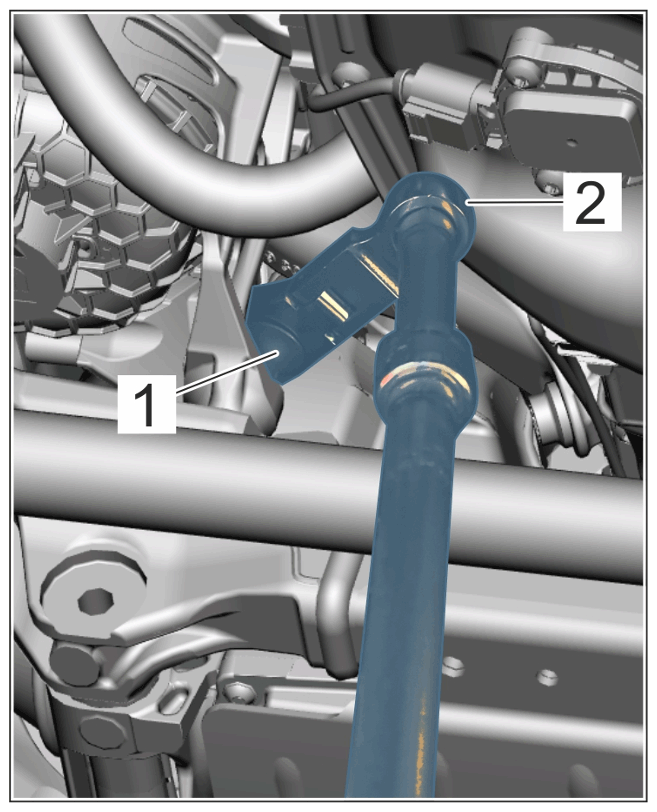

Right side of engine mount - example of use of special tool T10384

2.2 Unscrew screws securing engine mount to front-axle carrier (outer) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

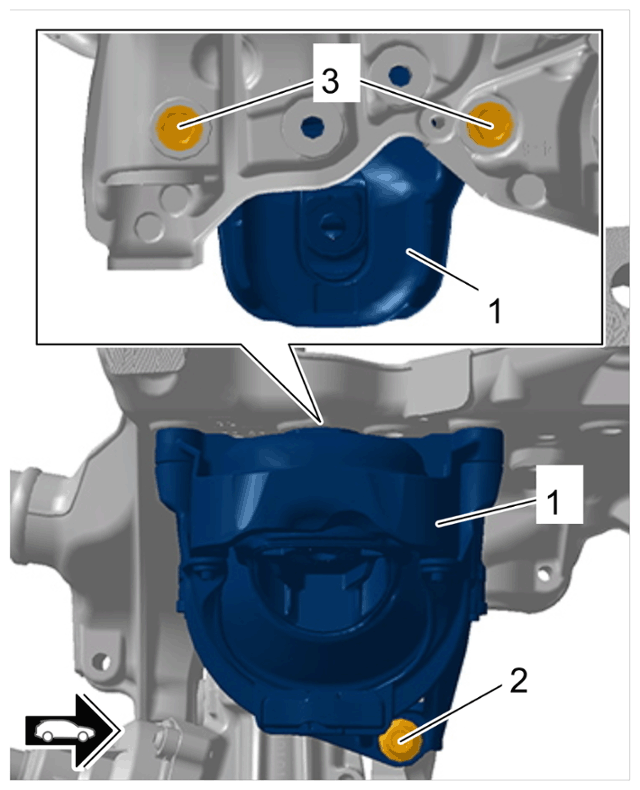

Engine mount to front axle carrier

Remove engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

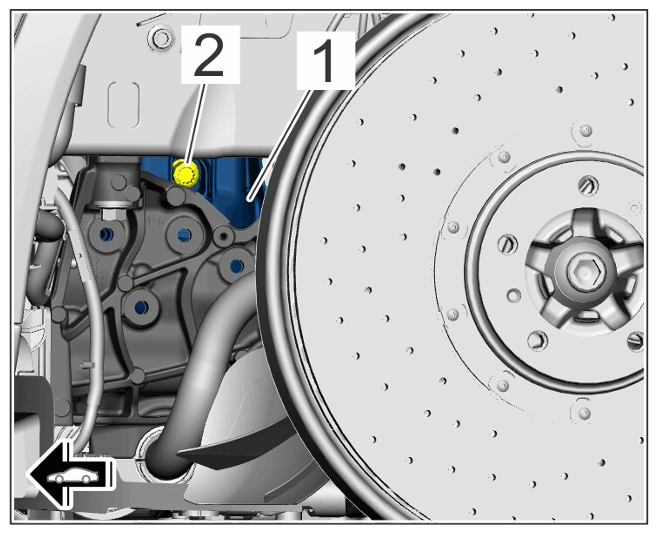

Engine mount
1. 3.1 Unscrew screw -2- .
2. 3.2 Remove engine mount -1- downwards.
3. 3.3 Replace screw -2- .
