Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Support the engine on the body.
> 100113 ATTACHING ENGINE (SUPPORTING ON BODY)
Remove front underbody cover.
> Refer to the appropriate service information.
Remove wheel housing liner.
> Refer to the appropriate service information.
Only for V8 Hybrid:
Remove air-conditioning compressor.

> 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR
Disconnect anti-roll bar on front axle carrier.
> 407719 REMOVING AND INSTALLING STABILIZER, FRONT

> 407719 REMOVING AND INSTALLING STABILIZER, FRONT (PDCC)
Left side only:
Disconnect coolant lines on the front axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

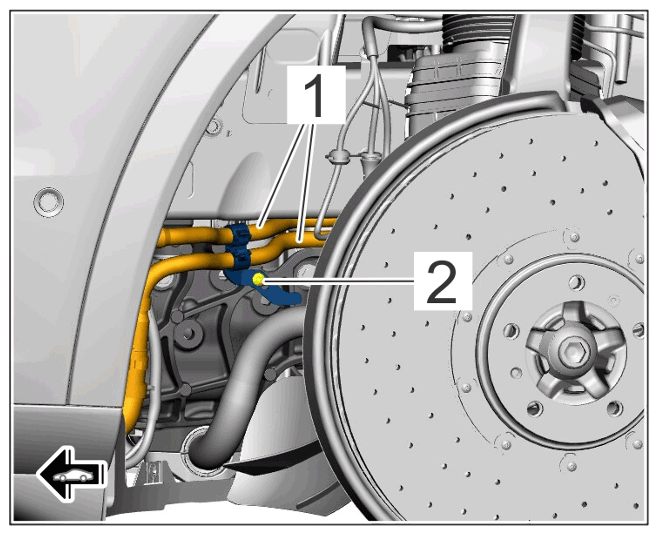

Coolant lines on the front left axle carrier
1. 6.1 Unscrew screw -2- .
2. 6.2
