Removing Crankcase Cover

WARNING: This page is about a different variant/trim than selected.

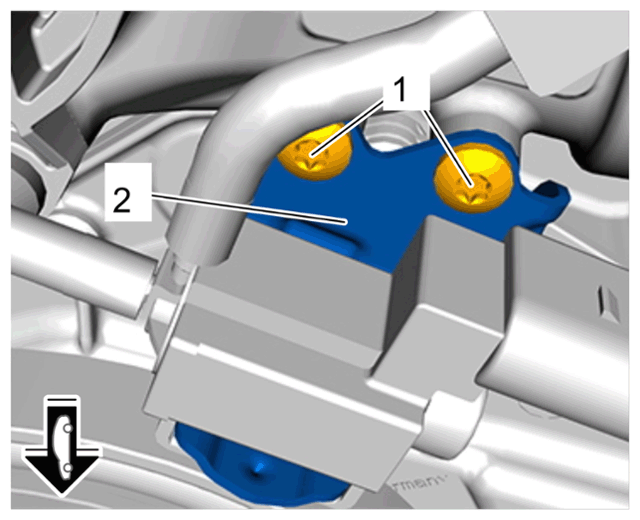

Unscrew screws on holder for change-over valve -1- and move holder -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection holder

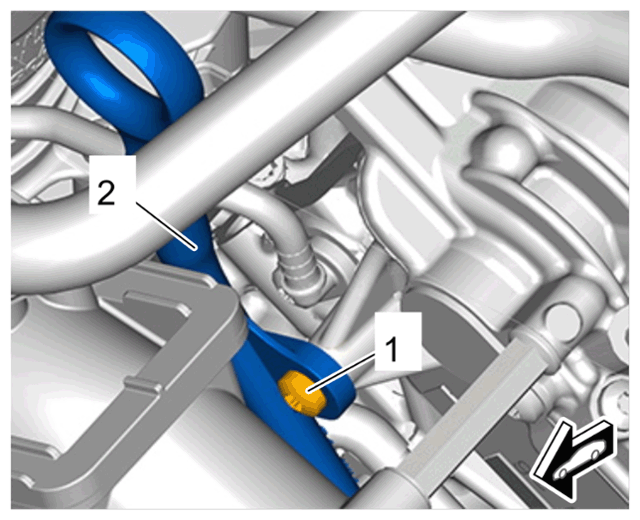

Remove guide for oil dipstick -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil dipstick
1. 2.1 Unscrew screw on guide for oil dipstick -1- .
2. 2.2 Pull guide for oil dipstick -2- out of the crankcase cover.
Remove crankcase cover -18- .

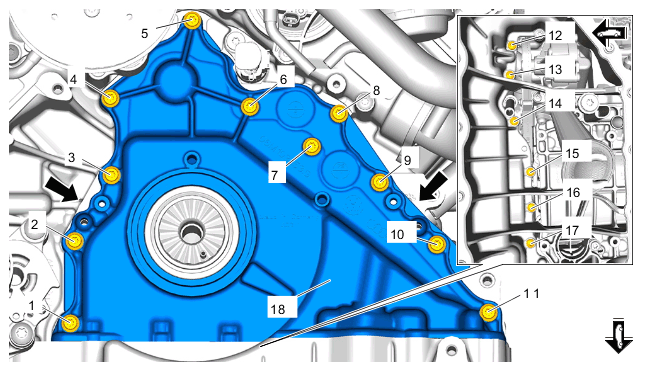

Fig 1: Crankcase Cover Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover
1. 3.1 Unscrew screws on crankcase cover -1 to 17- .
2. 3.2 Screw a screw for the crankcase cover -18- into each of the threaded bores -Arrows- by hand.
3. 3.3 Tighten screws carefully and uniformly in order to loosen the crankcase cover -18- from the bonding.
4. 3.4 Remove crankcase cover -18- and remove screws from the threaded bores -Arrows- .
