Removing Oil Spray Jet

WARNING: This page is about a different variant/trim than selected.

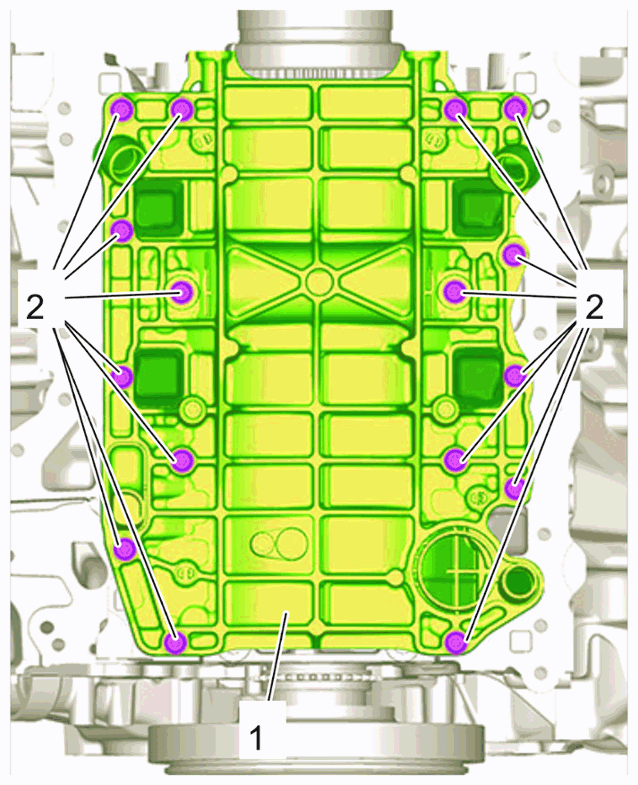

Remove oil windage tray -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil windage tray (shown on V6)
1. 1.1 Unscrew screws -2- and remove oil windage tray -1- .
  Information

  The crankshaft must be turned only in direction of rotation of the engine.

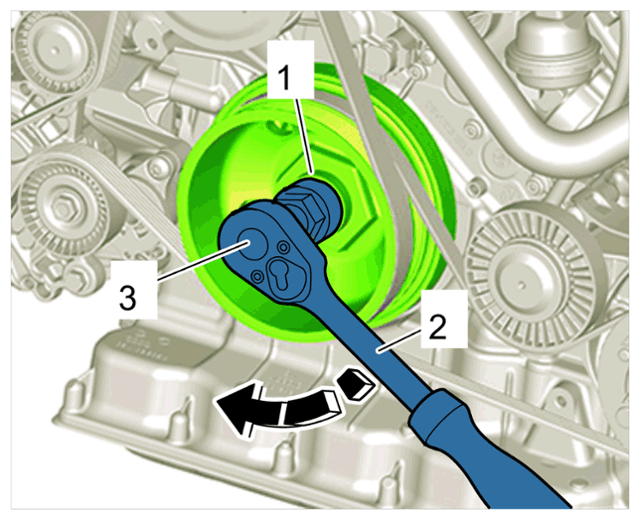

Turn the crankshaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankshaft
1. 2.1 Turn the crankshaft -1- using > T40263 - wrench, 21 mm-2- and > T40314 - adapter-3- until the connecting rod bolts are accessible.
  Information

  For re-installation, mark the installation position and allocation of the connecting-rod bearing caps to the cylinder and to the connecting rod.

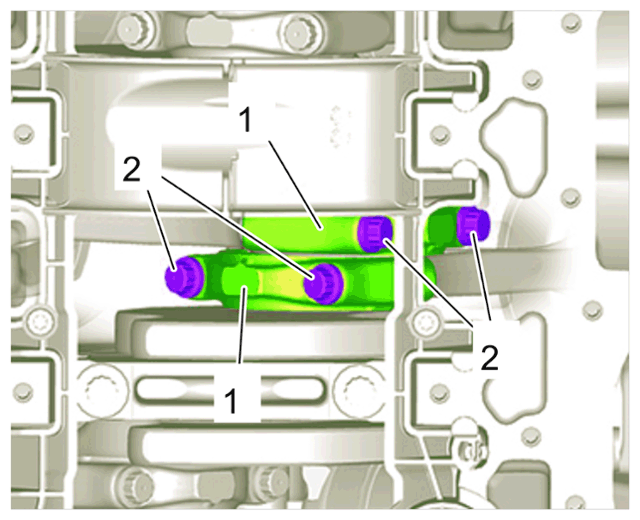

Remove the relevant connecting-rod bearing caps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting-rod bearing cap
1. 3.1 Unscrew screw -2- and remove connecting-rod bearing cap -1- .

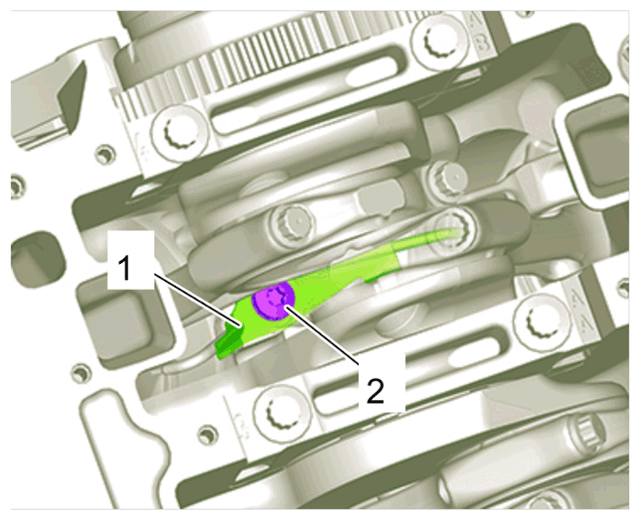

Remove the relevant oil spray jet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil spray jet
1. 4.1 Unscrew screw -2- .
2. 4.2 Remove oil spray jet -1- .
To remove other oil spray jets, repeat the procedure on the relevant oil spray jets.
