Engine Number Marking

Information

• Number embossing tools must not be used for marking.
• Due to the material composition, the engine number must be engraved using the specified tool.

1. Prepare > VAS 221 003 - marking pen-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

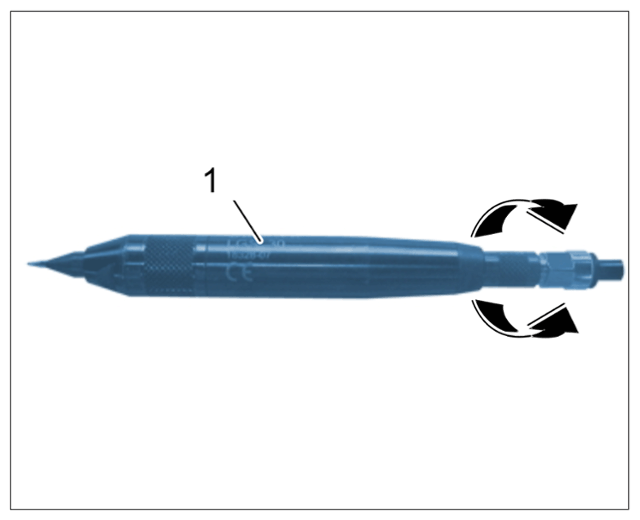

   Marking pin VAS 221 003

   1. 1.1  Connect > VAS 221 003 - marking pen-1-  to compressed air supply.
   2. 1.2  Turn the adjusting ring -Arrows-  to adjust the compressed air supply.
   3. 1.3  First test the tool on a test part.
2. Engrave the engine number using > VAS 221 003 - marking pen  template 0.5 (5 mm) > Example of a template.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

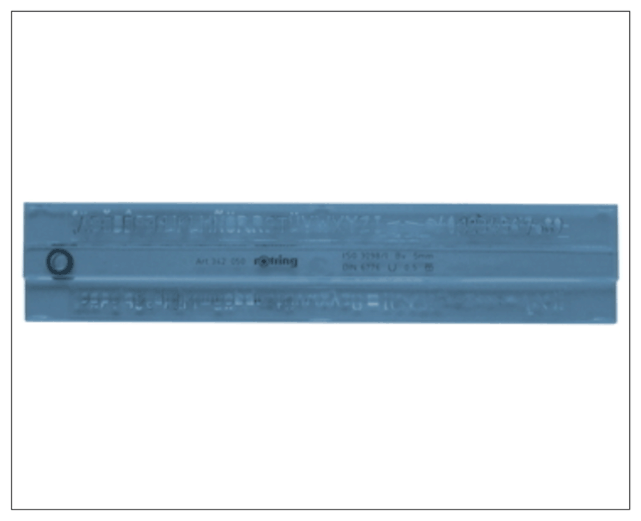

   Example of a template
