Location	Description	Type	Basic value
PDCC ground line to longitudinal member (front axle)	Ground pin, M10	Tightening torque	16 Nm (12 ftlb.)
Fastening nut securing ground line to body	Item 4	Tightening torque	9 Nm (6.5 ftlb.)

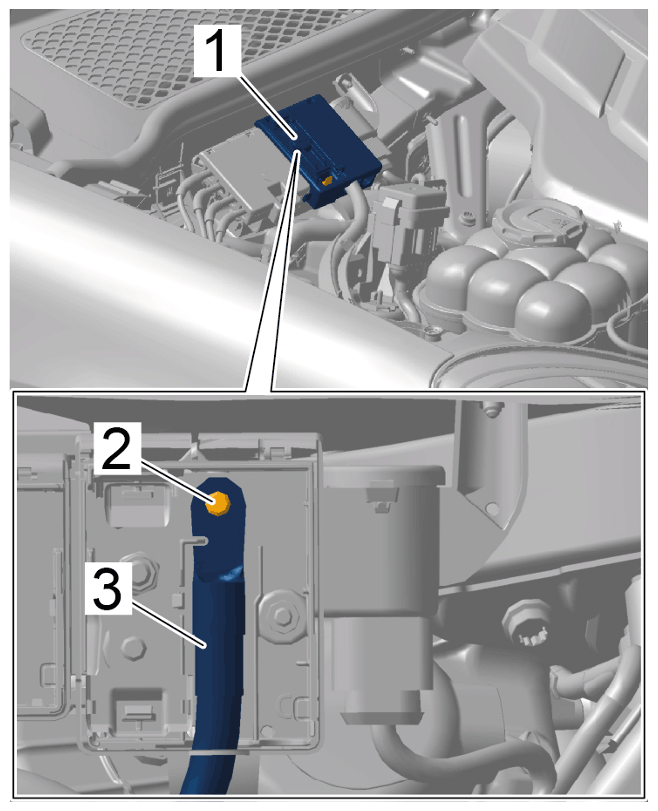

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection
Line bracket fastening points	Item 2	Tightening torque	4 Nm (3 ftlb.)

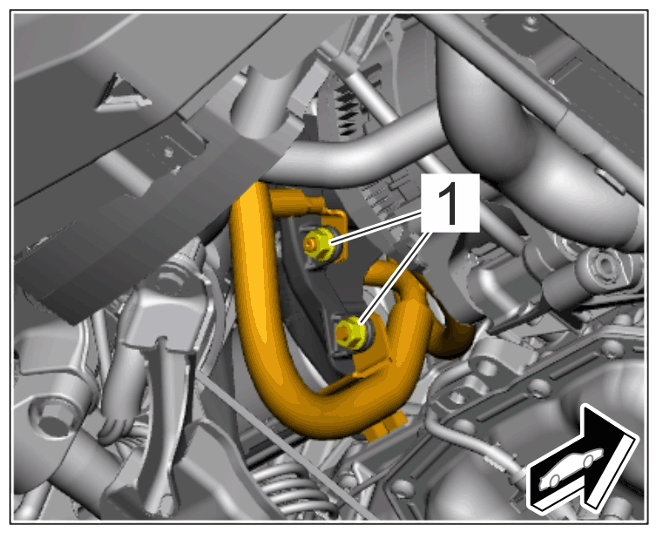

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw for line bracket	Item 1	Tightening torque	4 Nm (3 ftlb.)

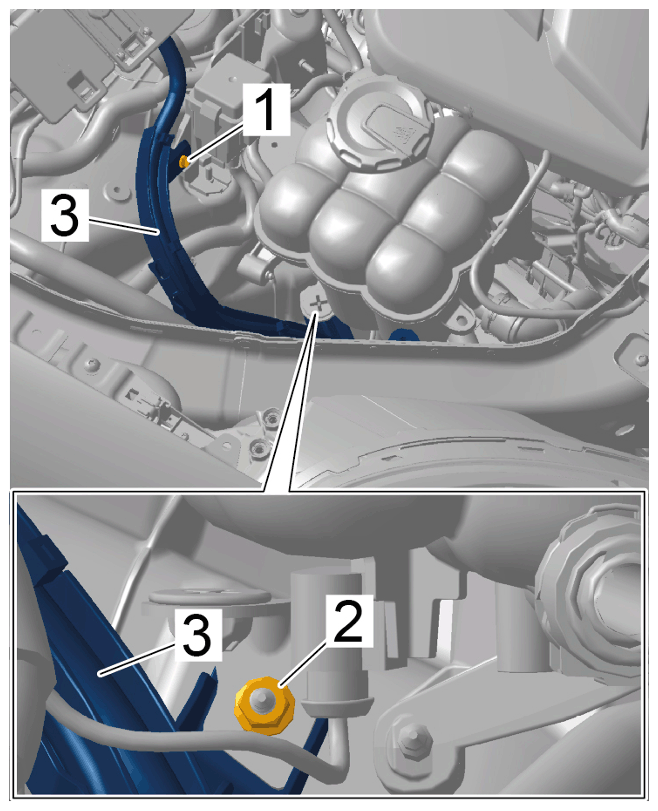

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening nut on external power connection	Item 2	Tightening torque	20 Nm (14.8 ftlb.)

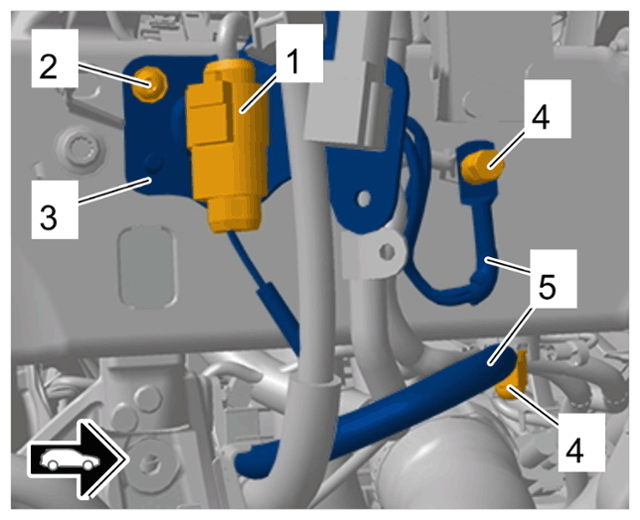

Courtesy of PORSCHE CARS NORTH AMERICA, INC. External power connection cover
Ground line on engine carrier	Item 1	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line on engine carrier
Fastening screw for line bracket on longitudinal member	Item 2	Torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for line bracket on l or gitudinal member
Screw-type clamp for pressure hose		Tightening torque	5.5 Nm (4.1 ftlb.)
Cross member to body	Screw, M10 x 50	Tightening torque	55 Nm (41 ftlb.)
Torque converter to drive plate	Screw, M10 x 1 x 15.5 - observe mounting specification!	Tightening torque	60 Nm (44 ftlb.)
Front axle carrier on front body	Item 2: M12 hexagon-head bolt x 1.5 x 90/Always replace screws following removal!	Initial tightening torque	115 Nm (84.8 ftlb.)
Front axle carrier on front body	Item 2: M12 hexagon head bolt x 1.5 x 90/Always replace bolts following removal!	Final tightening torque	+ 90°
Front axle carrier on rear body	Item 3: M14 hexagon-head bolt x 1.5 x 100/Always replace screws following removal!	Initial tightening torque	130 Nm (95.9 ftlb.)
Front axle carrier on rear body	Item 3: M14 hexagon head bolt x 1.5 x 100/Always replace bolts following removal!	Final tightening torque	+ 180°
Longitudinal member on front axle carrier	Item 2 and 6: M6 hexagon-head bolt x 20	Tightening torque	10 Nm (7.4 ftlb.)
Slide of longitudinal member	Item 3: M8 hexagon-head bolt x 75	Tightening torque	25 Nm (18.4 ftlb.)
Cable holder to wheel bearing housing	Internal serration screw, M8 x 25	Tightening torque	20 Nm (15 ftlb.)
Spring strut fork to lower trailing arm	Hexagon-head bolt, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	90 Nm (67 ftlb.)
Spring strut fork to lower trailing arm	Hexagon-head bolt, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Anti-roll bar to connecting link (conventional)	Hexagon-head bolt, M10 x 62 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	40 Nm (30 ftlb.)
Anti-roll bar to connecting link (conventional)	Hexagon-head bolt, M10x 62 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Anti-roll bar to connecting link (PDCC)	12 point socket, M12 x 65 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	60 Nm (44 ftlb.)
Anti-roll bar to connecting link (PDCC)	12 point socket, M12 x 65 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Connecting link to spring strut (conventional)	12 point socket, M10 x 85 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	40 Nm (30 ftlb.)
Connecting link to spring strut (conventional)	12 point socket, M10 x 85 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
Connecting link to spring strut (PDCC)	12 point socket, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	60 Nm (44 ftlb.)
Connecting link to spring strut (PDCC)	12 point socket, M12 x 85 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 90°
steering column lower part on power steering (universal joint)	Item 2: Internal multi-tooth screw M8 x 30/Always replace screw following removal!	Initial tightening	20 Nm (14.8 ftlb.)
Steering column lower part to power steering (universal joint)	Item 2: Internal multi-tooth screw M8 x 30/replace screw after every removal!	Final tightening	+ 90°

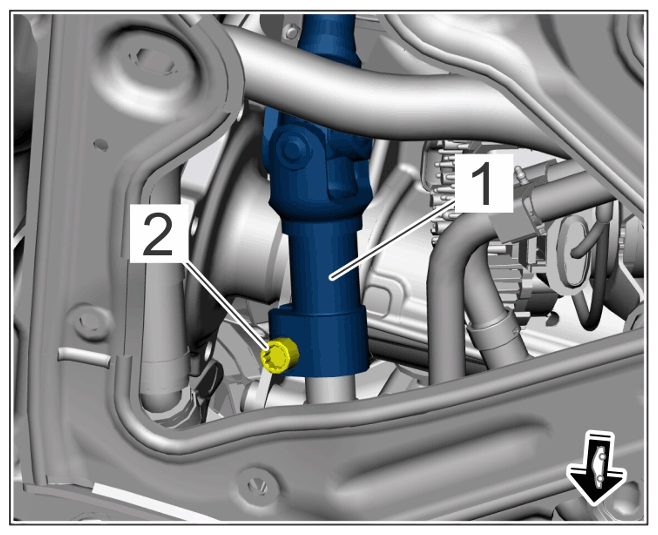

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for power-steering/steering column low part
Brake calliper to wheel bearing housing	Cheese head bolt, M14/always replace screws or bolts following removal	Initial tightening	30 Nm (22 ftlb.)
Brake calliper to wheel bearing housing	Cheese head bolt, M14/always replace screws or bolts following removal	Final tightening	+ 90°
Oil cooler to transmission	Screw, M6 x 18	Tightening torque	8 Nm (6 ftlb.)
