Additional Coolant Pump Low-Temperature System (P1, P2)

WARNING: This page is about a different variant/trim than selected.

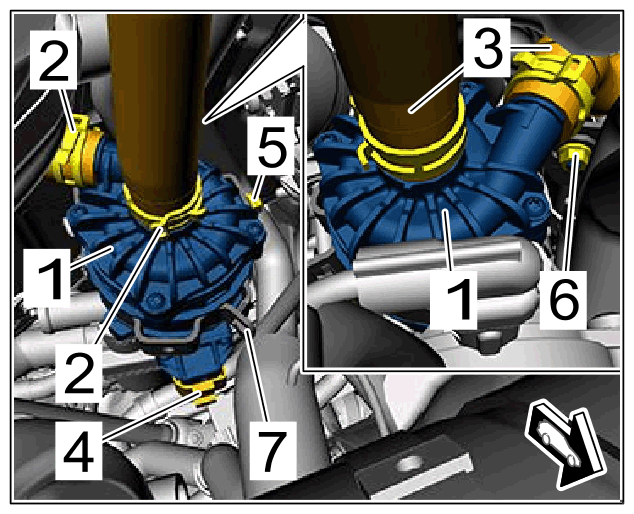

Fig 1: Additional Coolant Pump Low-Temperature System (P1) Without Particle Filter Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump low-temperature system (P1) without particle filter

6	Nut > Tightening torque 8 Nm

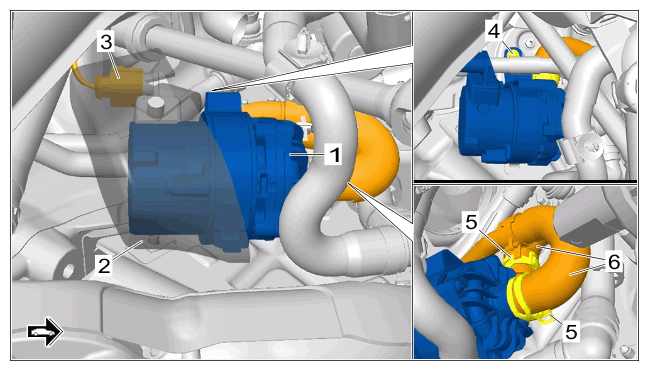

Fig 2: Additional Coolant Pump Low-Temperature System (P1) With Particle Filter Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump low-temperature system (P1) with particle filter

4	Nut > Tightening torque 8 Nm

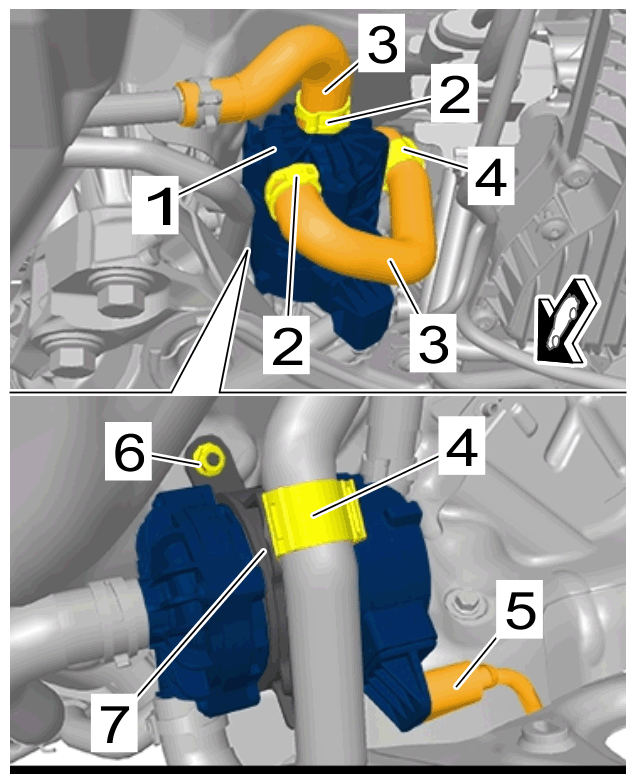

Fig 3: Additional Coolant Pump Low-Temperature System (P2) Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional coolant pump low-temperature system (P2)

6	Nut > Tightening torque 8 Nm

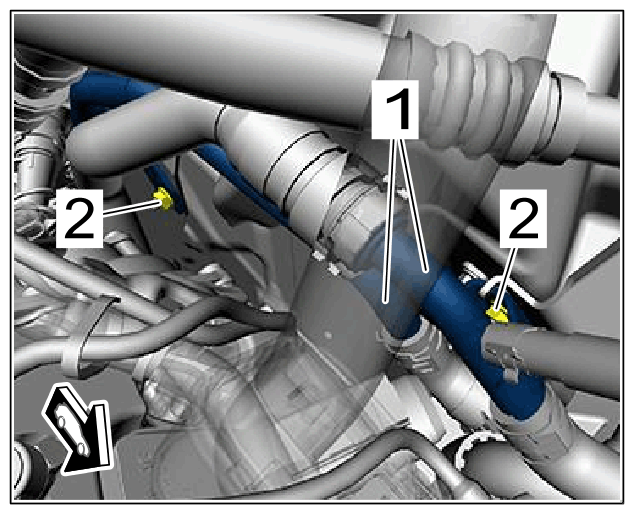

Fig 4: Coolant Pipes On Body Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipes on body

2	Nut > Tightening torque 5 Nm

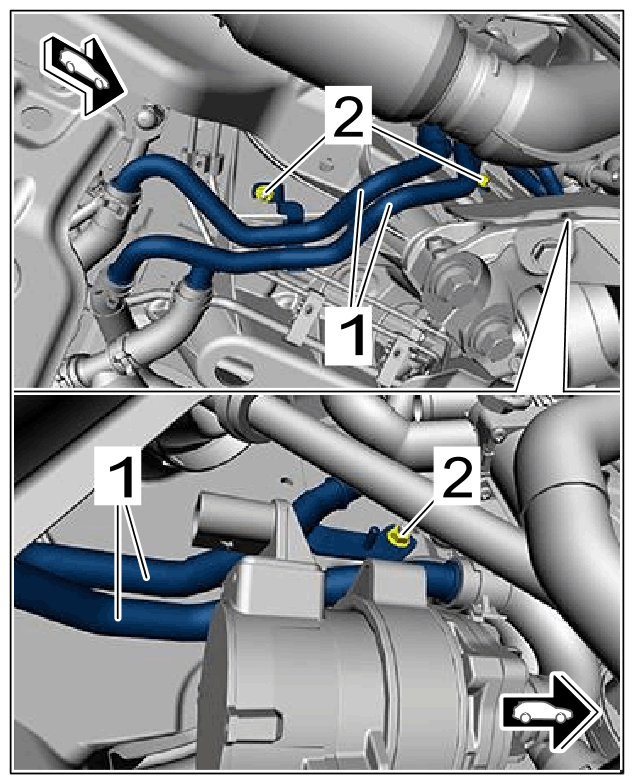

Fig 5: Bracket Coolant Hoses Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket coolant hoses

2	Nut > Tightening torque 5 Nm

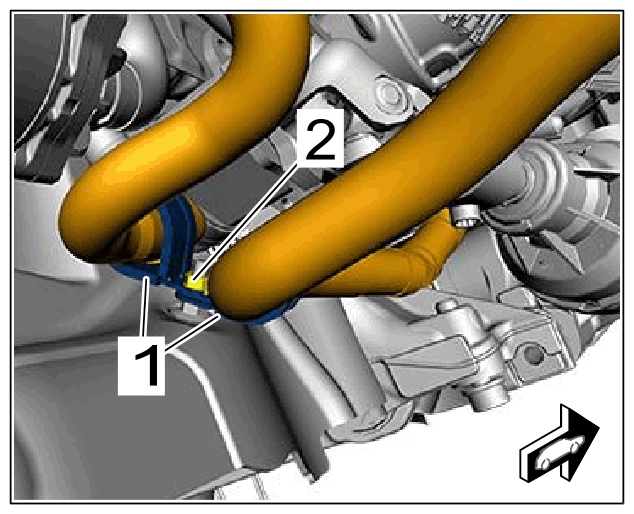

Fig 6: Coolant Pipes On Body Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipes on body

2	Nuts/screw > Tightening torque 5 Nm > Tightening torque 8 Nm
