Camshaft Controller

WARNING: This page is about a different variant/trim than selected.

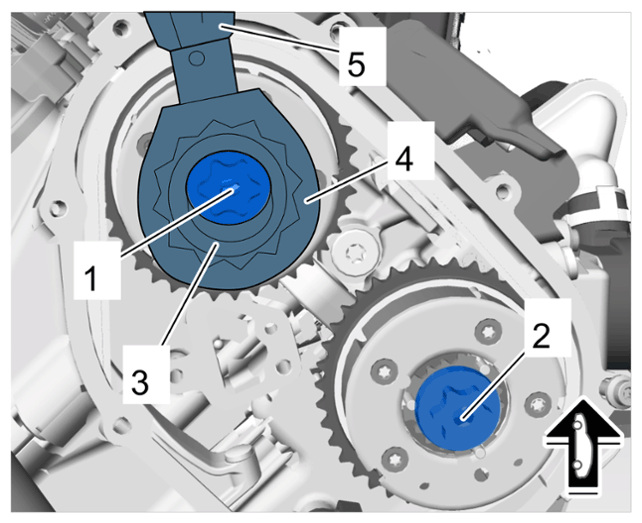

Fig 1: Camshaft Controller Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening camshaft controller

1	Camshaft controller for outlet camshaft > Initial tightening 30 Nm (22 ftlb.) > Final tightening + 35°
2	Camshaft controller for intake camshaft > Initial tightening 30 Nm (22 ftlb.) > Final tightening + 35°
3	Hook wrench T90001
4	Ring tool attachment VAS 261 001
5	Torque wrench VAS 6583
