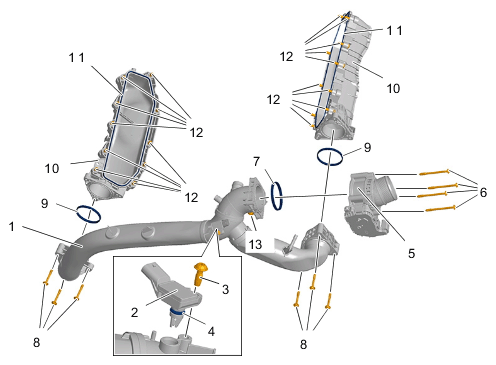

Intake-air distributor - V6 monoturbo
| 1 | Centre intake-air distributor |
| 2 | Pressure sensor |
| 3 | Screw > Tightening torque 5 Nm (3.5 ftlb.) |
| 4 | O-ring/replace |
| 5 | Throttle valve |
| 6 | Screws > Tightening torque 7 Nm (5 ftlb.) |
| 7 | Seal/replace if damaged |
| 8 | Screws > Tightening torque 7 Nm (5 ftlb.) |
| 9 | Seal/replace if damaged |
| 10 | Intake-air distributor, left and right |
| 11 | Seal/replace if damaged |
| 12 | Screws, M6 x 25/Observe tightening sequence > Initial tightening 8 Nm (6 ftlb.) |
| 13 | Screw > Tightening torque 8 Nm (6 ftlb.) |
