Removing Roof Sun Blind

WARNING: This page is about a different variant/trim than selected.

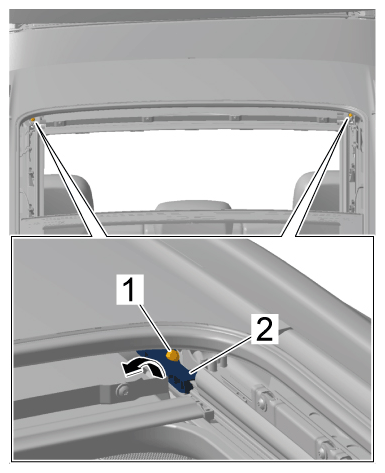

Unscrew screw -1- and detach guide -2- from sun blind rail -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide

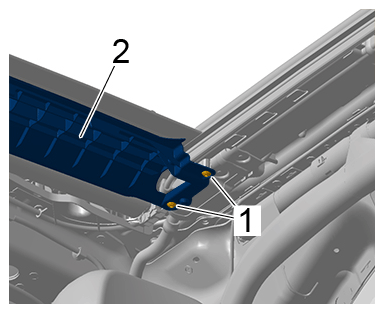

Unscrew screws -1- at the left and right and remove cross bar -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross bar

Information

The roof sun blind motor is actuated using a 4-mm Allen key.

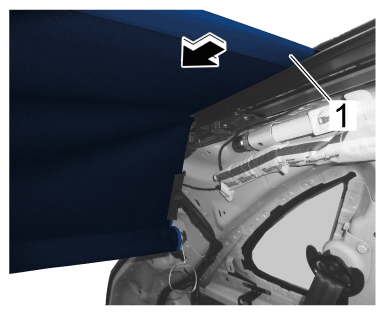

Guide out roof sun blind -1- at the roof sun blind motor -2- by approx. 40 cm with your hand -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof sun blind

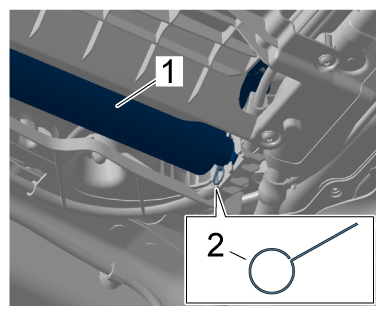

Turn roof sun blind -1- as far as required with your hand until the left staking bore -2- is exposed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left staking bore

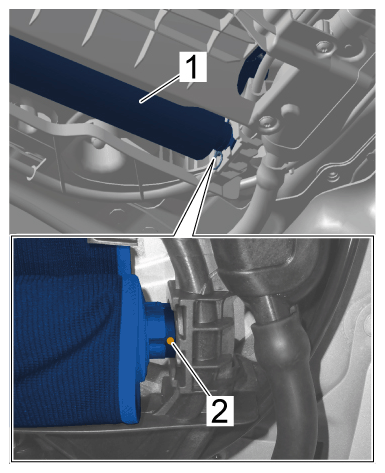

> T40011 - Locking pin -2- must be inserted into the left staking bore.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Staking pin

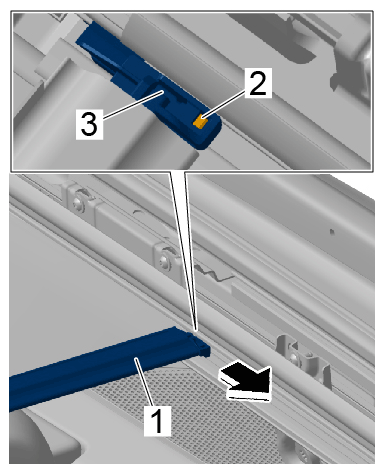

Press roll-up blind bow -1- forward -Arrow- and hold it. At the same time, release the catch -2- in the guide shoe -3- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roll-up blind bow

Information

The help of another person is required.

Information

Do not wrinkle up fabric as it tears easily.

Remove roof sun blind.

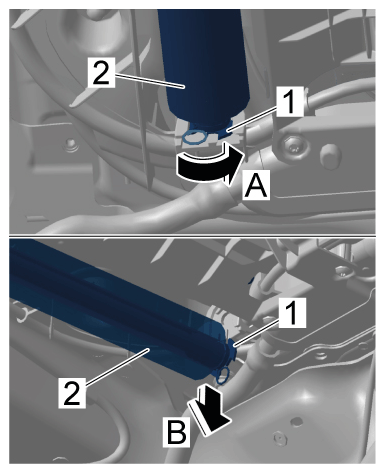

7.1 Turn left bearing -1- of the roof sun blind -2- by approx. 45° -arrow A- and remove left bearing -1- (-arrow B-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left bearing

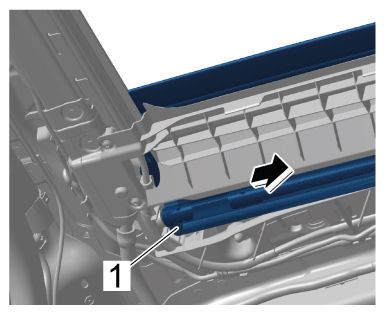

7.2 Pull right bearing -1- out of the guide on the sliding-roof frame -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right bearing

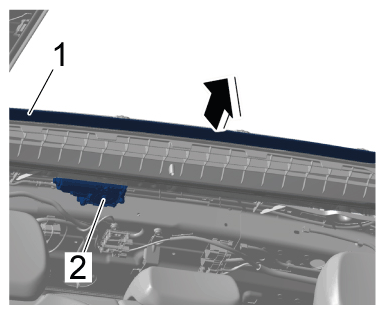

7.3 Pull roof sun blind -1- out to the rear -Arrow- and remove roof sun blind -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide shoes
