Installing Roof Sun Blind

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:
Information

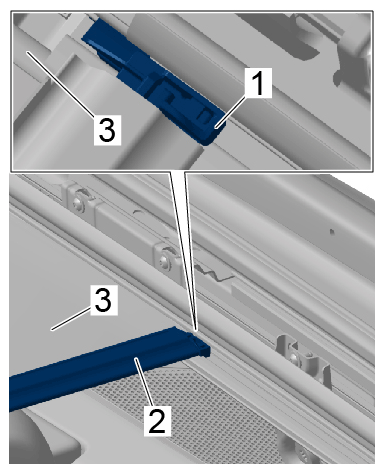

Insert guide shoe -1- into the roll-up blind bow -2- at the font and on the sun blind fabric -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide shoe

Pre-tension roof sun blind and insert it into the sliding-roof frame.

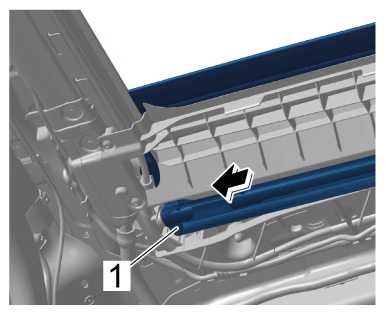

3.1 Insert right bearing -1- into the guide on the sliding-roof frame -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right bearing

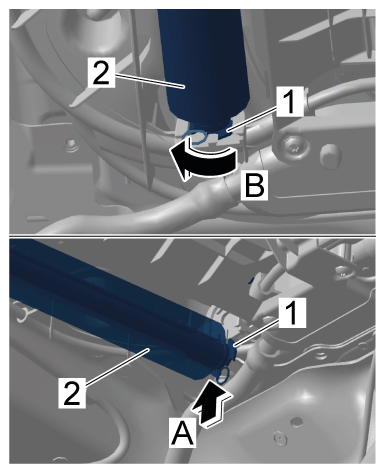

3.2 Insert left bearing -1- into the sliding-roof frame -arrow A- and turn roof sun blind -2- by approx. 45° -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left bearing

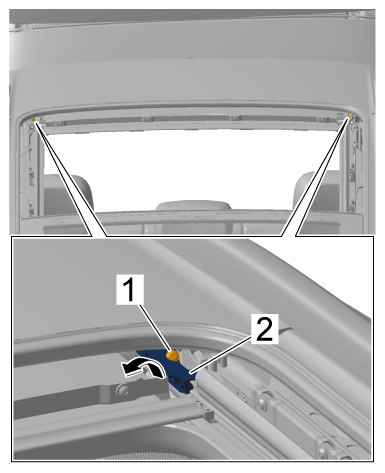

3.3 > T40011 - Locking pin -2- can now be pulled out of the left staking bore.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Staking pin

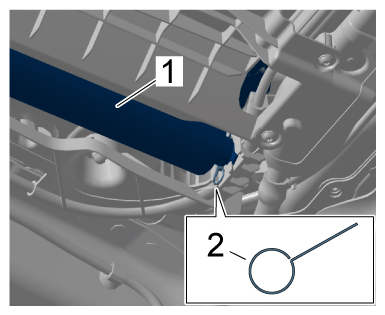

Install cross bar -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross bar

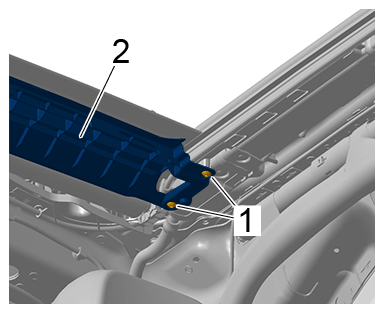

Tighten screws -1- to > Tightening torque 3 Nm (2 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Tighten screw -1- to > Tightening, torque 3 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
