Installing Seal For Roof Assembly
WARNING: This page is about a different variant/trim than selected.
Information
The roof assembly seal and vehicle must be at room temperature for installation.
Information
Do not stretch the roof assembly seal during installation.
Information
The seam of the roof assembly seal must be aligned in the middle of the roof at the rear, otherwise the vent holes will be squashed.

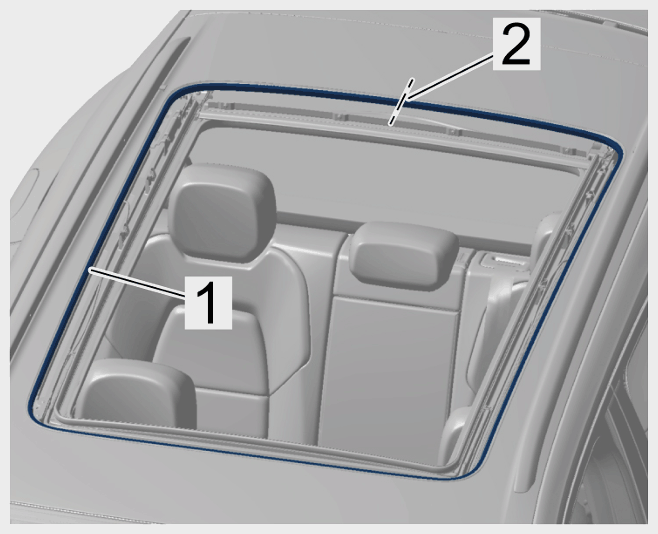

- Position new roof assembly seal -1-
at the middle of the roof at the rear -2-
.
Roof assembly seal
Information
Pull protective film off the adhesive tape in sections only and at the same time press the roof assembly seal onto the roof cutout for the sliding roof with the help of another person.
- Lift up roof assembly seal -1-
in the centre roof area at the rear -2-
, pull off protective film at the left and press roof assembly seal on all the way around.
Roof assembly seal
- Cut off projecting end of the roof assembly seal cleanly using a suitable tool.
Make sure there is no gap between the ends of the seal.
- Press on the roof assembly seal -1-
over its entire length without tension in accordance with the contour of the sliding roof using > 9886/1 - press-on roller
.
Roof assembly seal
