Overview Of Water Drains

WARNING: This page is about a different variant/trim than selected.

Information

The following overview serves as a guide to the installation positions of the water drains on the sliding roof or convertible top and plenum panel. Add-on parts in the area are not shown for the sake of clarity.

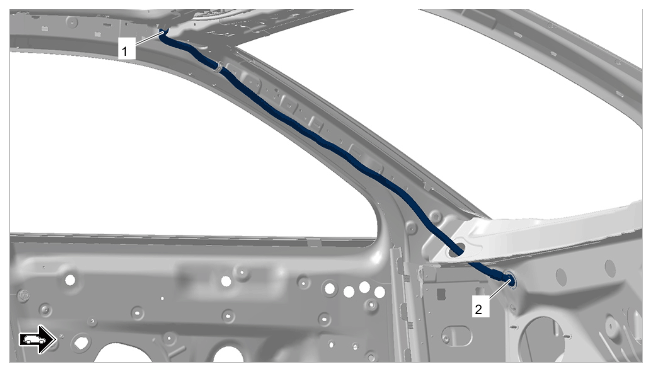

G15237108

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner water drain (front)

1	Inner water drain (front) - inlet
2	Inner water drain (front) - outlet

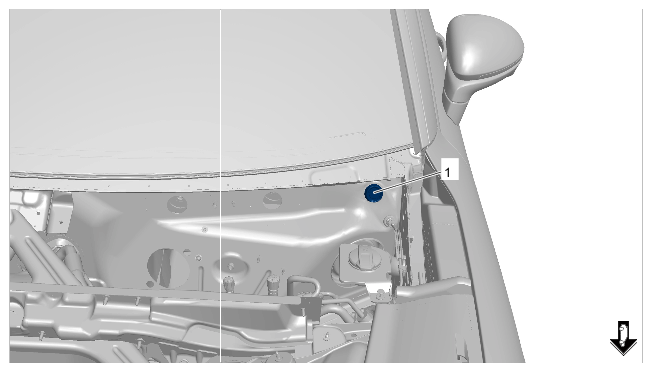

G15237109

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Water drain sleeve (front)

1	Inner water drain (front) - outlet

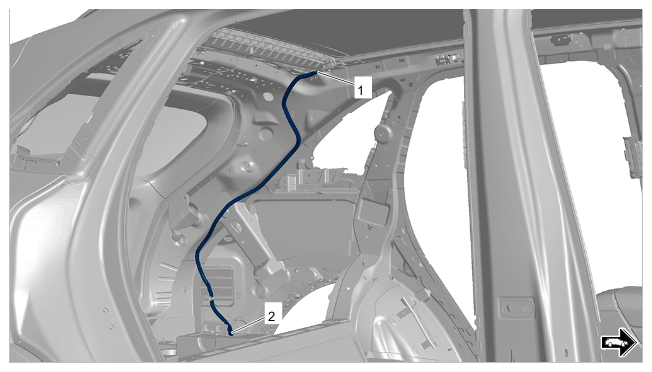

G15237110

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner water drain (rear)

1	Inner water drain (rear) - inlet
2	Inner water drain (rear) - outlet

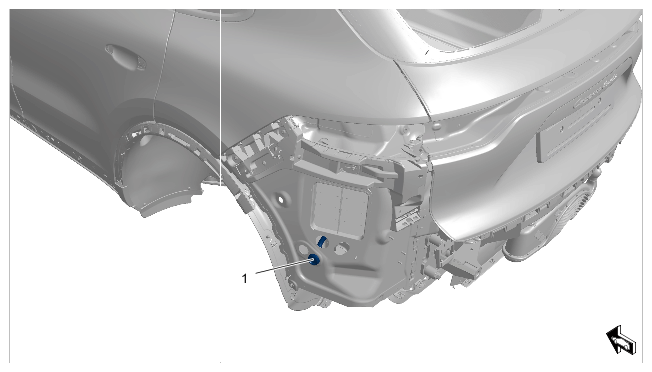

G15237111

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Water drain sleeve (rear)

1	Inner water drain (rear) - outlet

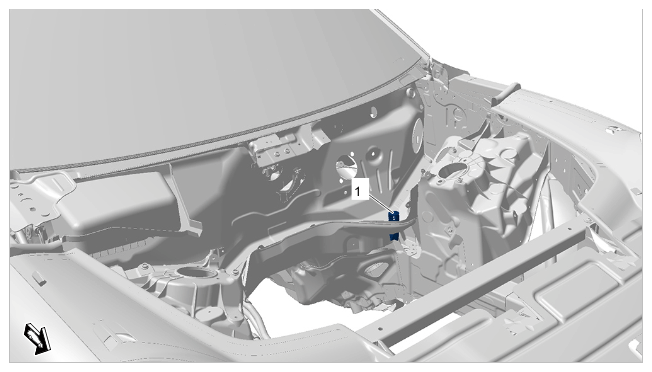

G15237112

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plenum panel water drain

1	Plenum panel water drain
