Checking Water Drains At The Front

WARNING: This page is about a different variant/trim than selected.

Find the installation position of the front water drains.
- > 6048IN WATER DRAIN
Remove front cover -1- .
- > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER - information on "Removing"
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

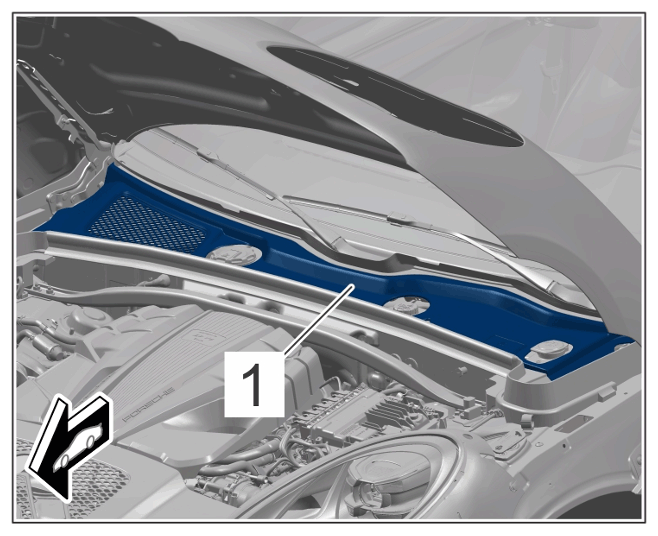

Front cover (shown on the Macan)
Check for dirt in the area around the water drains -1- at the front and remove it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

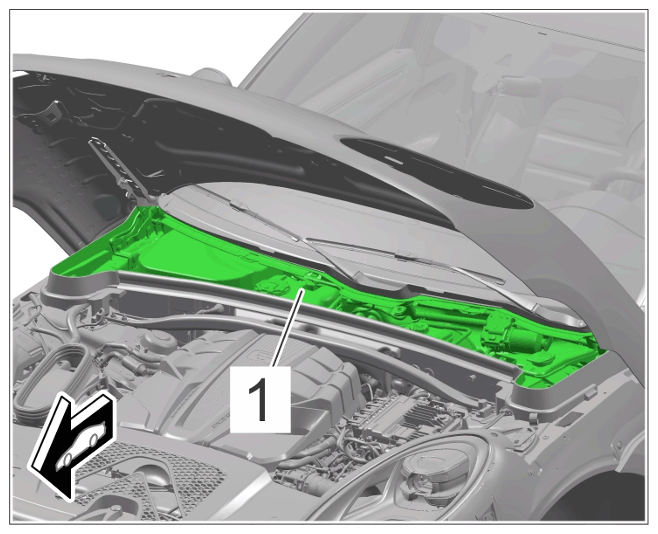

Area around water drains (shown on the Macan)
Install front cover -1- .
- > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER - information on "Installing"
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (shown on the Macan)
