Removing Seal For Sliding Roof

WARNING: This page is about a different variant/trim than selected.
  1. Open the sliding-roof panel fully.
  2. Pull sliding-roof seal -1-  off the roof assembly all the way around, starting at the rear -Arrow-  .

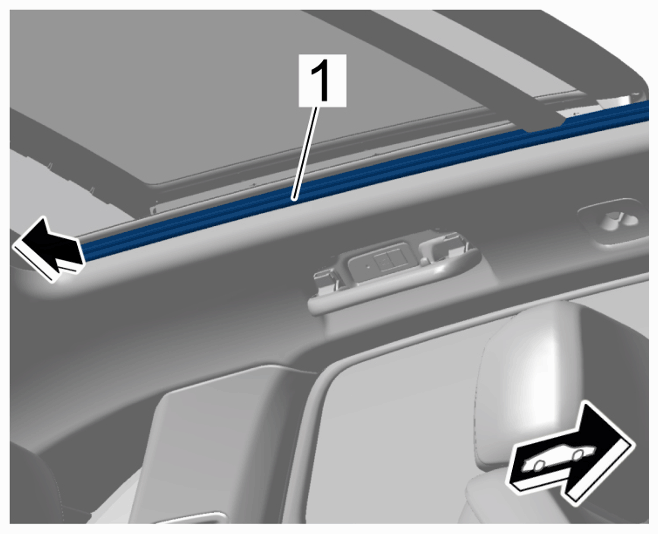

    G15237104Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal on sliding roof
