Installing Seal For Sliding Roof

WARNING: This page is about a different variant/trim than selected.
  1. Position new sliding-roof seal -1-  at the front on the roof assembly -Arrow-  .

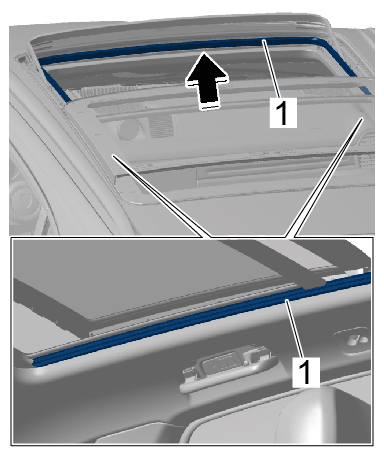

    G15237105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal on sliding roof

  2. Press new sliding-roof seal into the guides and press it in again all the way around using an assembly wedge.
