Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screws for sliding-roof panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15237091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sliding-roof panel

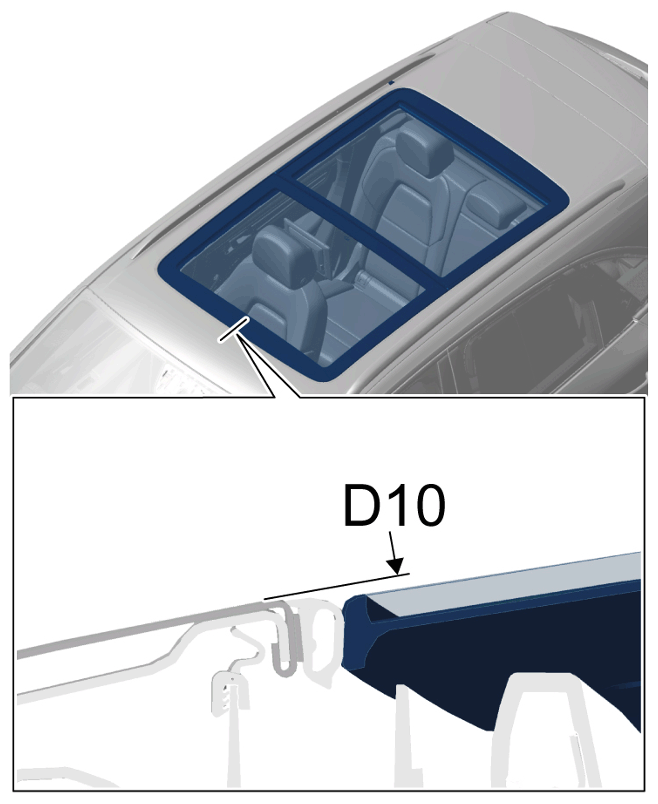

Front sliding-roof panel to roof (D10) Offset Gap dimension 1.8 mm +/- 1.1 mm
G15237092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
Side sliding-roof panel to roof (D14b_1) Offset Gap dimension 1.2 mm +/- 1.1 mm
G15237093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
Sliding-roof panel to rear panoramic roof glass panel (D11) Offset Gap dimension 0.8 mm +/- 0.5 mm
G15237094Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
