Removing Sliding-Roof Panel

WARNING: This page is about a different variant/trim than selected.
  1. Open the sliding-roof panel until the trim is accessible.

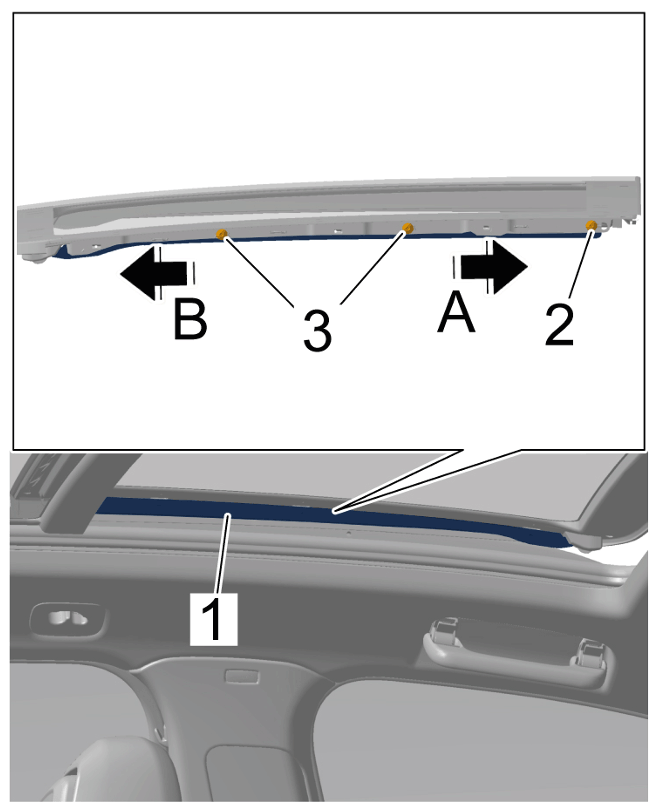

  2. Unhook trim -1-  at the front edge and pull it as far as it will go to the rear -arrow A-  .
    G15237096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  3. Pull trim -1-  at the rear edge inwards and disengage locking pin -2-  .
    G15237097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking pin

  4. Push trim -1-  forward -arrow B- and disengage locking pins -3-  .
    G15237098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking pins

  5. Remove cover.

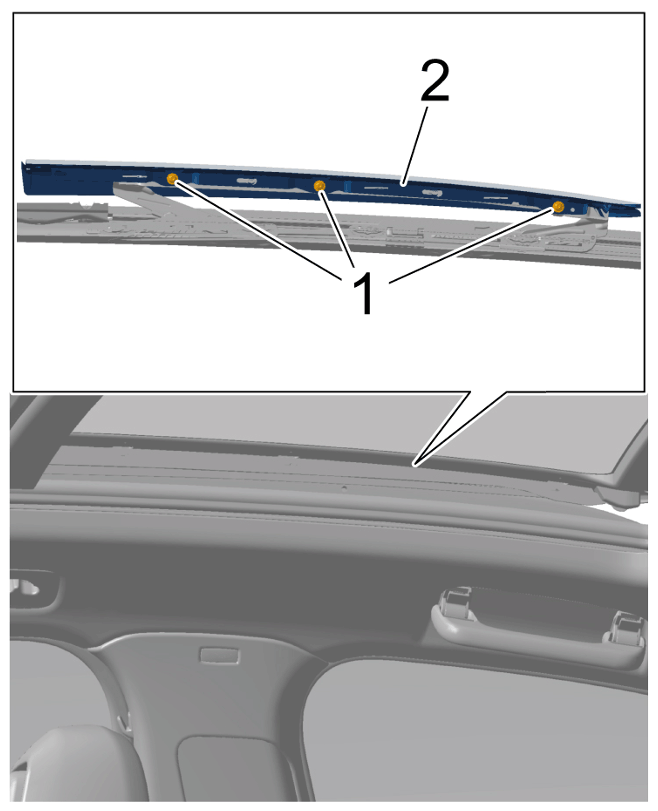

  6. Unscrew screws -1-  and remove sliding-roof panel -2-  .
    G15237099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sliding-roof panel
