Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance 1

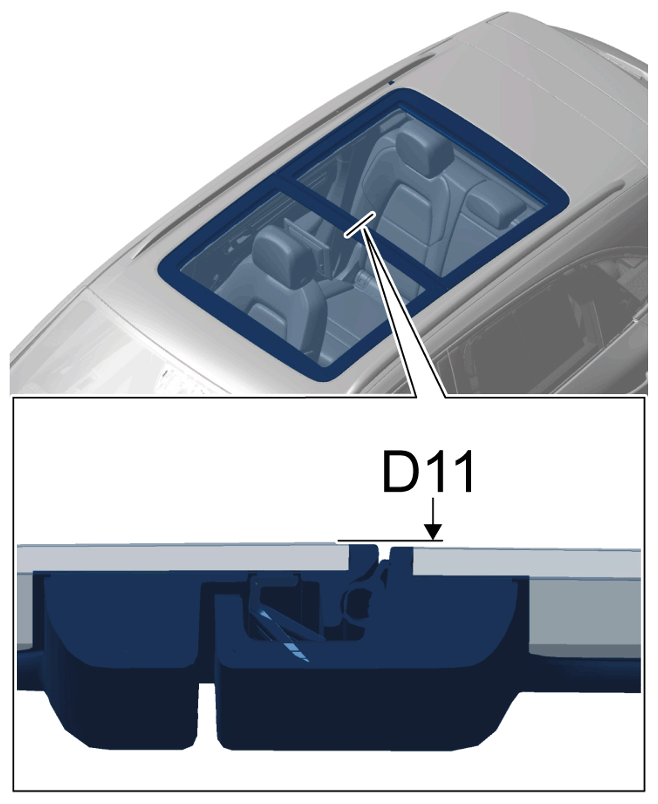

Sliding-roof panel to rear panoramic roof glass panel (D11)	Offset	Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

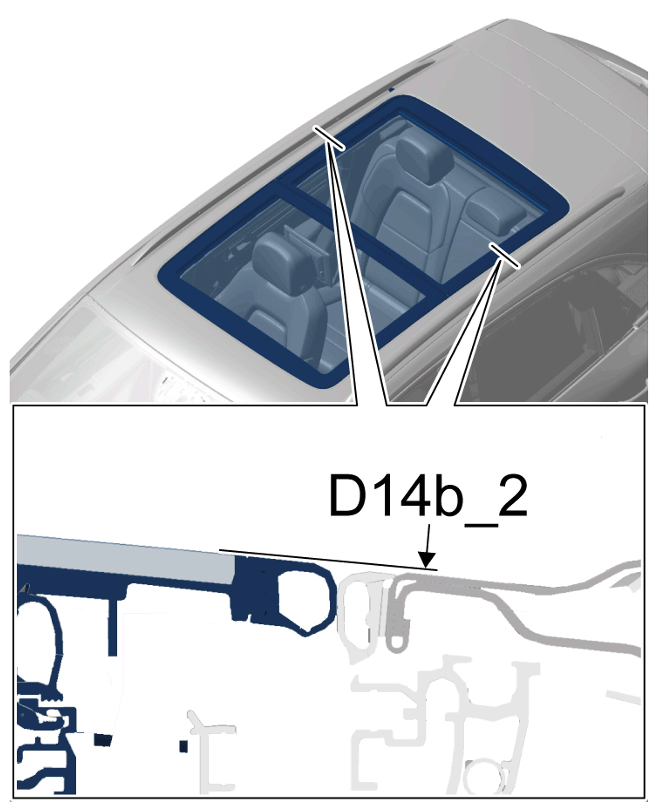

Rear panoramic roof glass panel to roof, sides (D14b_2)	Offset	Gap dimension	0.3 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

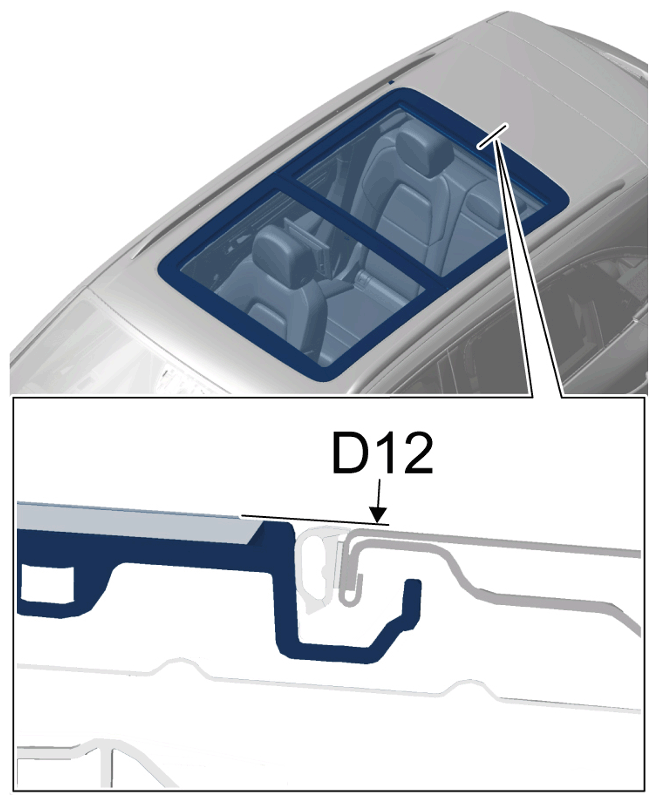

Rear panoramic roof glass panel to roof, rear (D12)	Offset	Gap dimension	0.6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

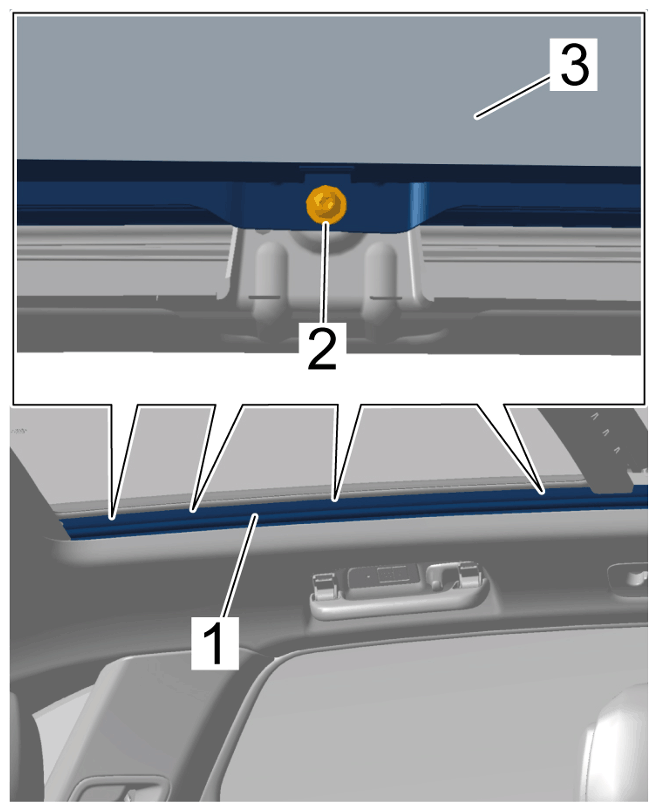

Screws for rear panoramic roof glass panel	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear panoramic roof glass panel

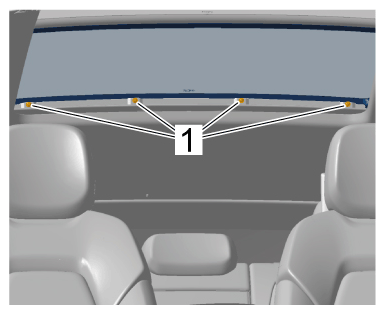

Screws securing panoramic roof glass panel to rear roof assembly	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear screws
