Removing Rear Panoramic Roof Glass Panel

WARNING: This page is about a different variant/trim than selected.

Pull off inner seal -1- in the rear panoramic roof glass panel area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner seal
Mark installation position of the screws -1- and -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Information

Micro-self-locking screws

Fit new screws following removal.
Unscrew screws -2- .

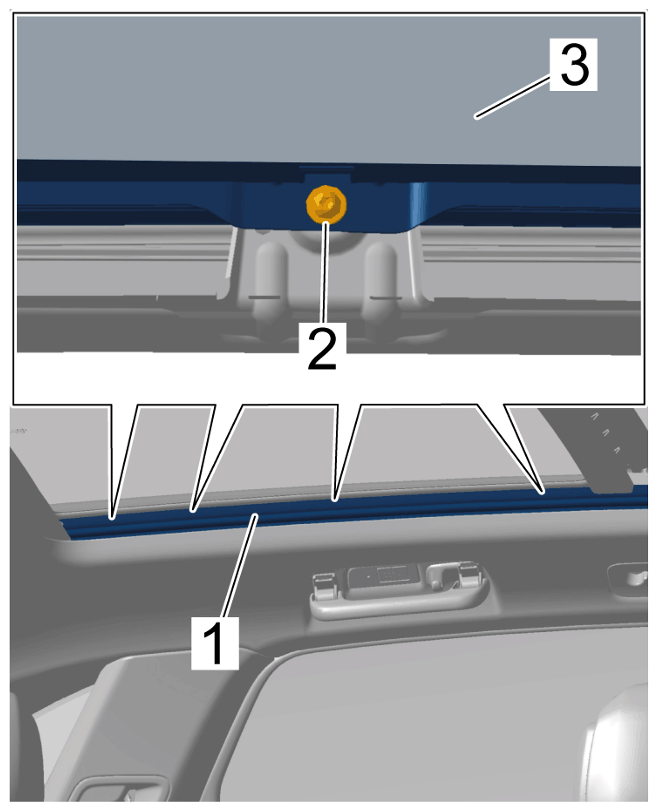

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear panoramic roof glass panel

Information

Micro-self-locking screws

Fit new screws following removal.
Unscrew screws -1- .

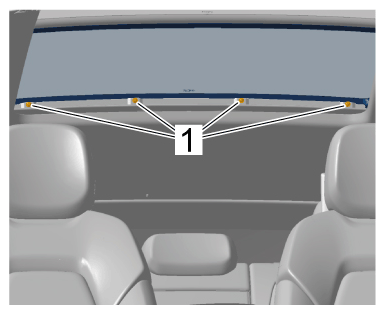

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws
Remove rear panoramic roof glass panel -1- .

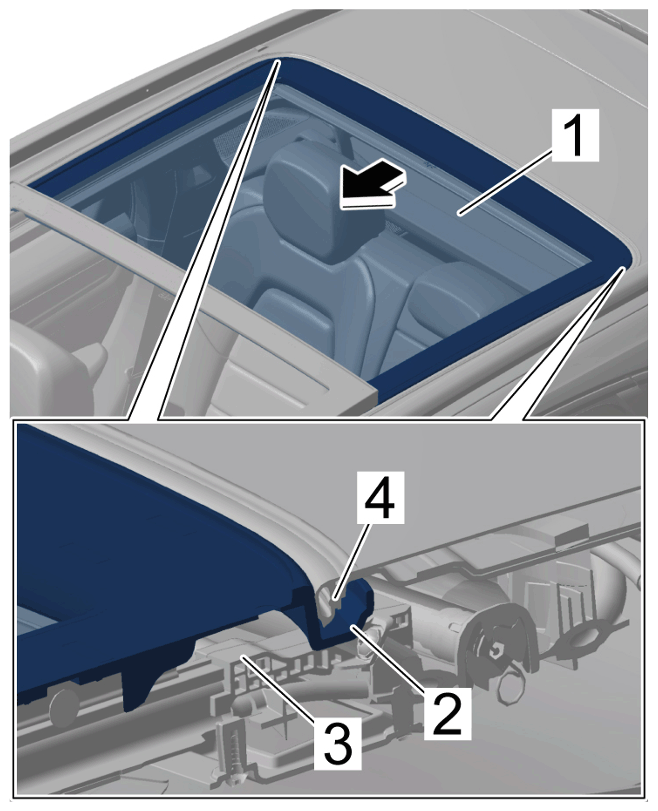

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear panoramic roof glass panel
1. 5.1 Lift up rear panoramic roof glass panel -1- .
2. 5.2 Pull rear panoramic roof glass panel -1- forward under the sliding roof -Arrow- .
3. 5.3 Guide out the rain channel -2- between the frame -3- and roof -4- .
  Information

  The help of another person is required.
4. 5.4 Remove rear panoramic roof glass panel -1- .
