Installing Rear Panoramic Roof Glass Panel

WARNING: This page is about a different variant/trim than selected.

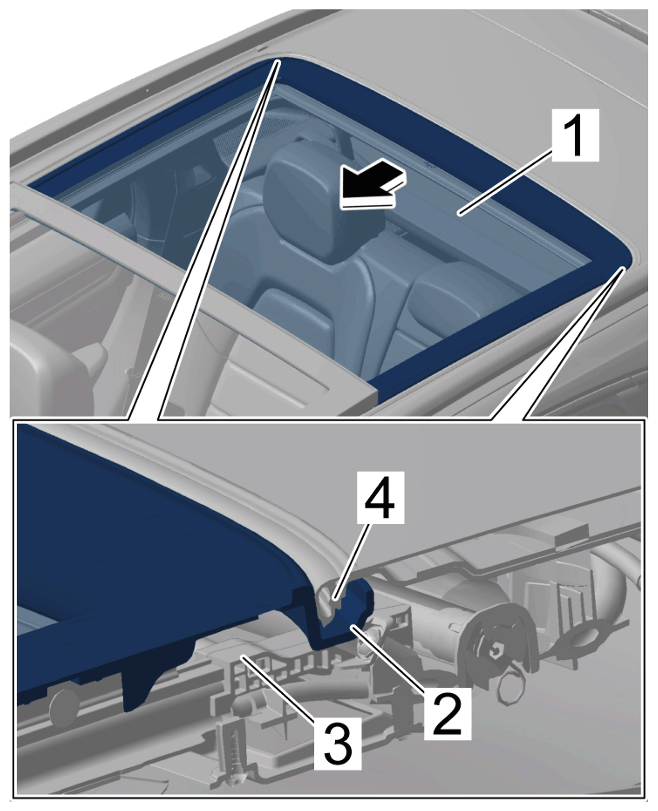

  1. Installation is performed in reverse order. Pay particular attention to the following: Guide the rain channel -2-  under the roof -4-  using a wedge.
    G15237085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear panoramic roof glass panel

    Information

    Micro-self-locking screws

    Fit new screws following removal.

    Information

    Tighten screws for rear panoramic roof glass panel hand-tight until the sliding-roof panel is set correctly.

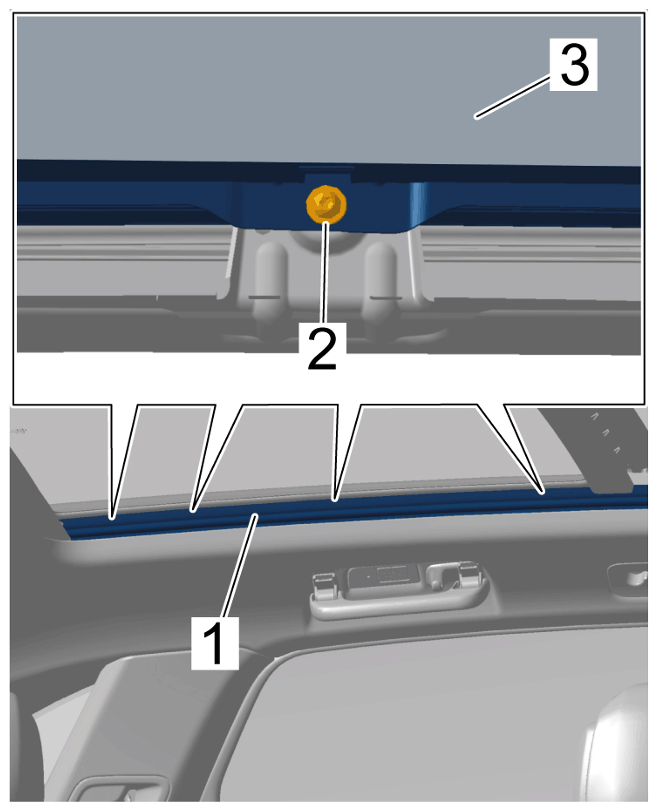

  2. Tighten screws -2-  hand-tight.
    G15237086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear panoramic roof glass panel
