Adjusting Rear Panoramic Roof Glass Panel

WARNING: This page is about a different variant/trim than selected.
  1. Close sliding-roof panel.
  2. Adjust rear panoramic roof glass panel.
    1. 2.1  Set gap dimension at the front by moving the rear panoramic roof glass panel. > Gap dimension 0.8 mm +/- 0.5 mm
    2. 2.2  Set gap dimension at the sides by moving the rear panoramic roof glass panel. > Gap dimension 0.3 mm +/- 1.1 mm
    3. 2.3  Set gap dimension at the rear by moving the rear panoramic roof glass panel. > Gap dimension 0.6 mm +/- 1.1 mm
  3. Tighten screws -2-  to > Tightening torque 3 Nm (2 ftlb.)  .

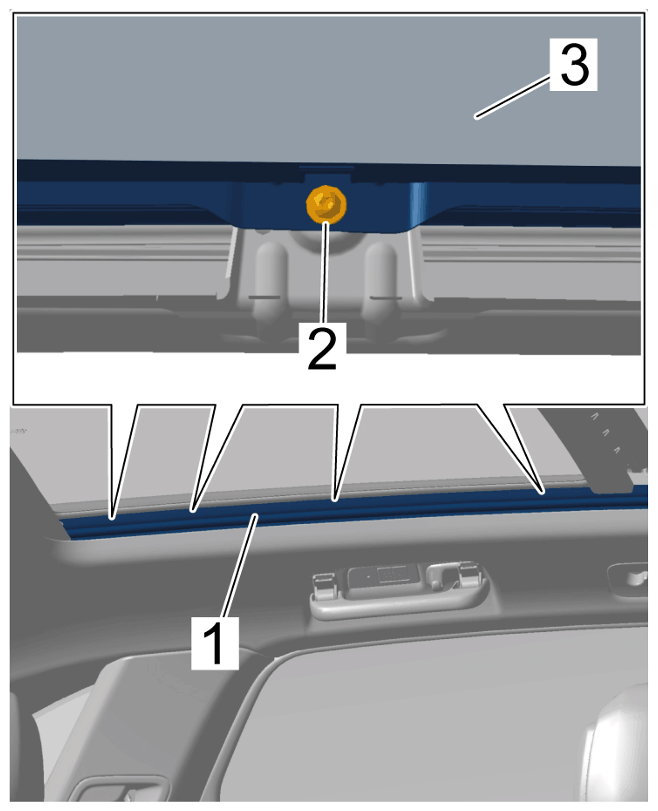

    G15237087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear panoramic roof glass panel

  4. Tighten rear screws -1-  to > Tightening torque 3 Nm (2 ftlb.)  .

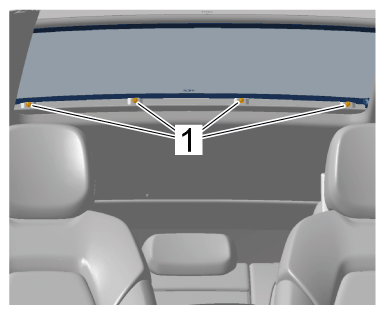

    G15237088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear screws

  5. Install inner seal -1-  .
    G15237089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inner seal
