Installing Air Deflector
WARNING: This page is about a different variant/trim than selected.

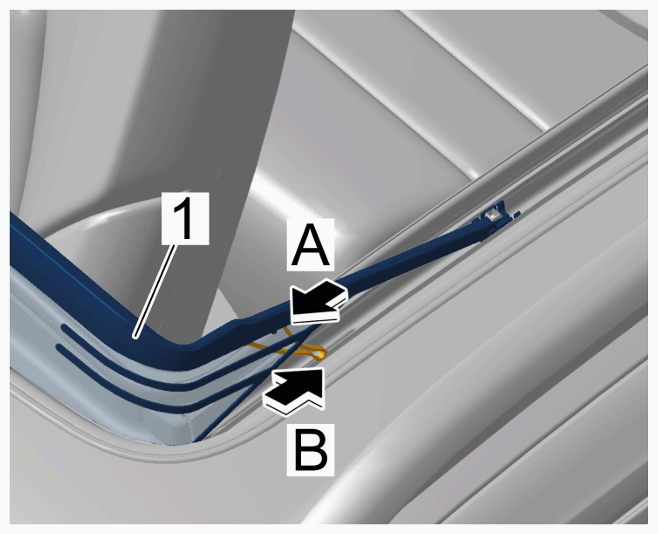

- Installation is performed in reverse order. Pay particular attention to the following: Press air deflector spring -1-
together -arrow A-
and swivel it to the rear -arrow B-
. Press frame of the air deflector -1-
down and clip in the net at the same time.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Air deflector
