Disassembling Sliding-Roof Frame

WARNING: This page is about a different variant/trim than selected.

Remove powered sunroof mechanism.
- > WM, 603519 REMOVING AND INSTALLING POWERED SUNROOF MECHANISM
Remove seal for sliding roof.
- > WM, 604619 REMOVING AND INSTALLING SEAL FOR SLIDING ROOF
Remove roof sun blind.
- > 607019 REMOVING AND INSTALLING ROOF SUN BLIND
Remove sunroof motor.
- > 601419 REMOVING AND INSTALLING SUNROOF MOTOR
Remove motor for sun blind.
- > 607219 REMOVING AND INSTALLING MOTOR FOR SUN BLIND
Remove control unit for sliding roof.
- > 606519 REMOVING AND INSTALLING CONTROL UNIT FOR SLIDING ROOF
Unclip electric wire harness -1- from sliding-roof frame at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

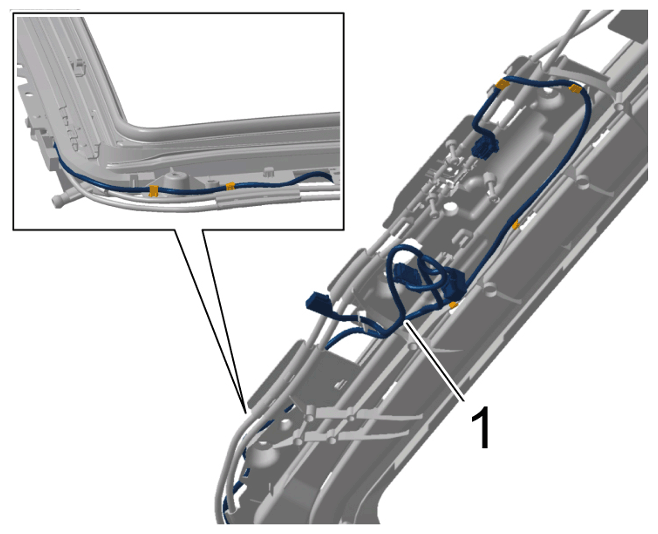

Unclip electric wire harness -1- from sliding-roof frame at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness, rear
Remove electric wire harness from sliding-roof name.
