Assembling Sliding-Roof Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

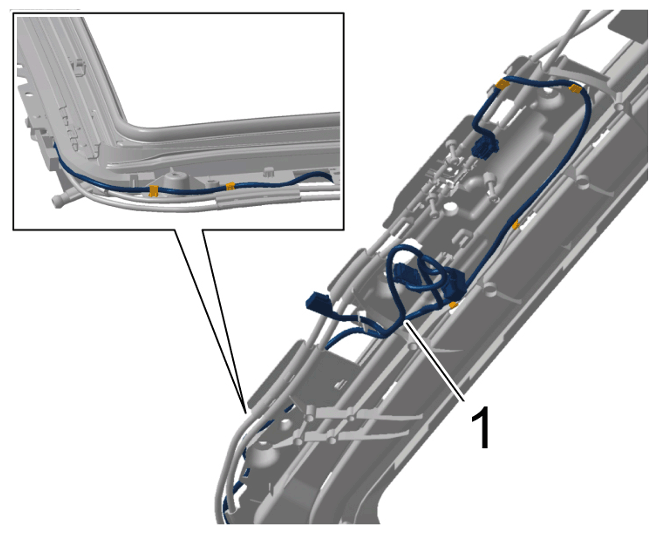

Electric wire harness, rear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

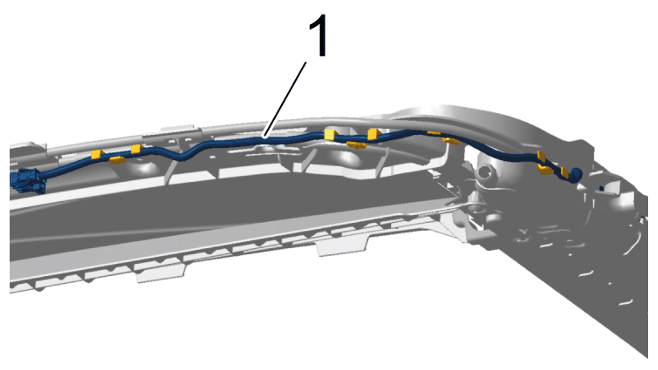

Electric wire harness, front

Information

Bonding surfaces must be clean and free of grease.

1. 3.1  Clean bonding surfaces.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

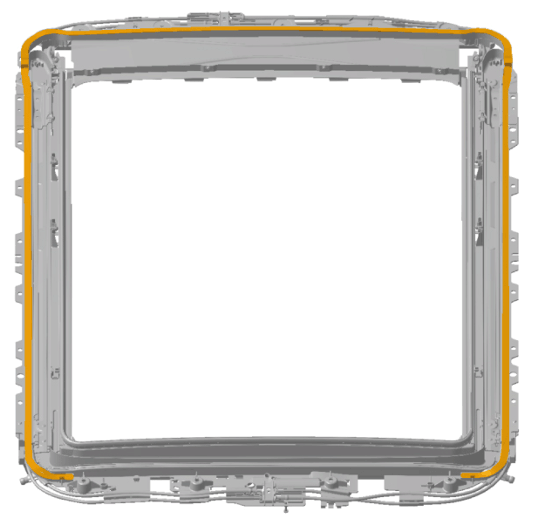

   Bonding surfaces

   Information

   Do not exceed the maximum processing time for the primer. Otherwise, primer will have to be applied again.

   • > Processing time at 20°C 60 min
2. 3.2  Apply primer to the bonding surfaces and leave it to dry off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

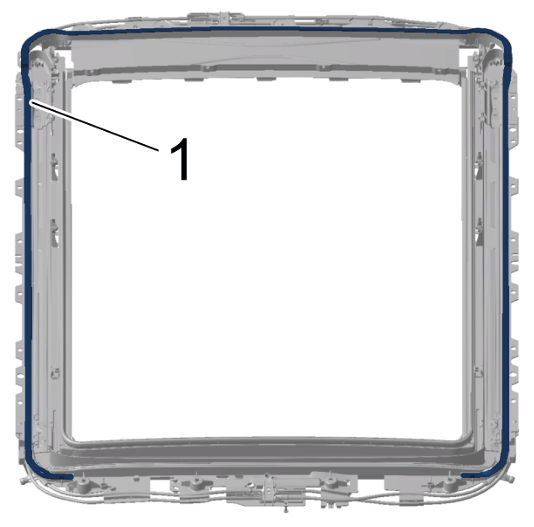

   Bonding surfaces

   Information

   Pull protective film off the foam seal only in sections and press the foam seal onto the sliding-roof frame at the same time.

3. 3.3  Pull protective film off foam seal -1-  and stick it into the cut-out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Foam seal
