Removing Sunroof Motor

WARNING: This page is about a different variant/trim than selected.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed
    1. → Switch off electric power to drive motor.
    2. → Make sure it does not switch on again.
    3. → Check that there is no electric charge.
  1. Release and unplug electric plug connection -1-  .
    G15237045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

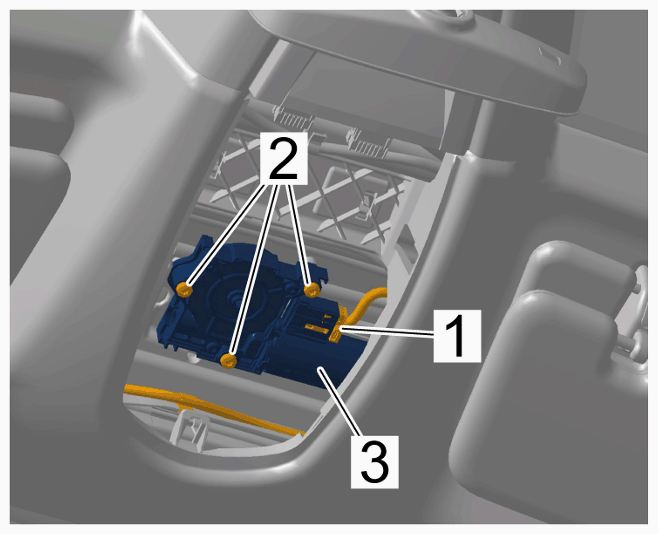

  2. Unscrew fastening screws -2-  .
    G15237046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  3. Remove sunroof motor -3-  .
    G15237047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sunroof motor
