Installing Sunroof Motor
WARNING: This page is about a different variant/trim than selected.

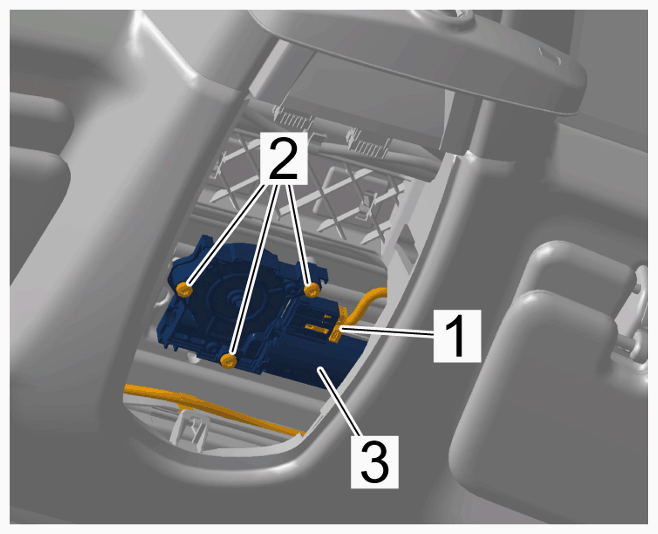

- Push sunroof motor -3-
with drive wheel into the cut-out in the frame on the sunroof.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sunroof motor
- Screw in fastening screws -2-
and tighten to > Tightening torque 3 Nm (2 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws
- Connect electric plug connection -1-
until it locks securely.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
