Removing Roof Assembly
WARNING: This page is about a different variant/trim than selected.

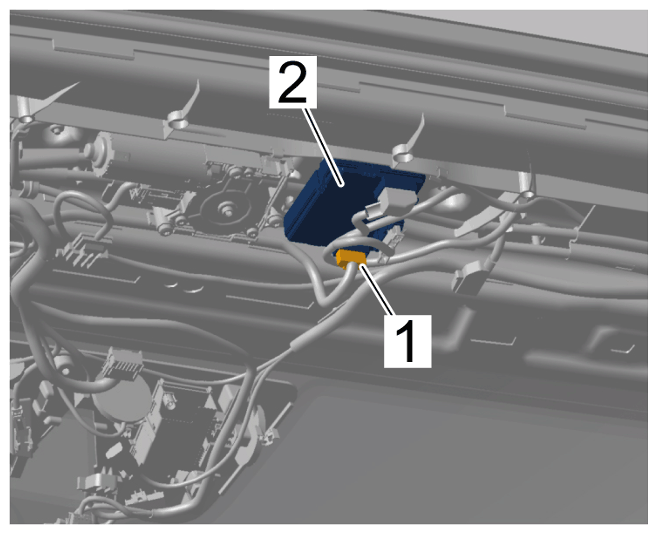

- Release and disconnect electric plug connection -1-
from control unit for sliding roof -2-
.
Electric plug connection

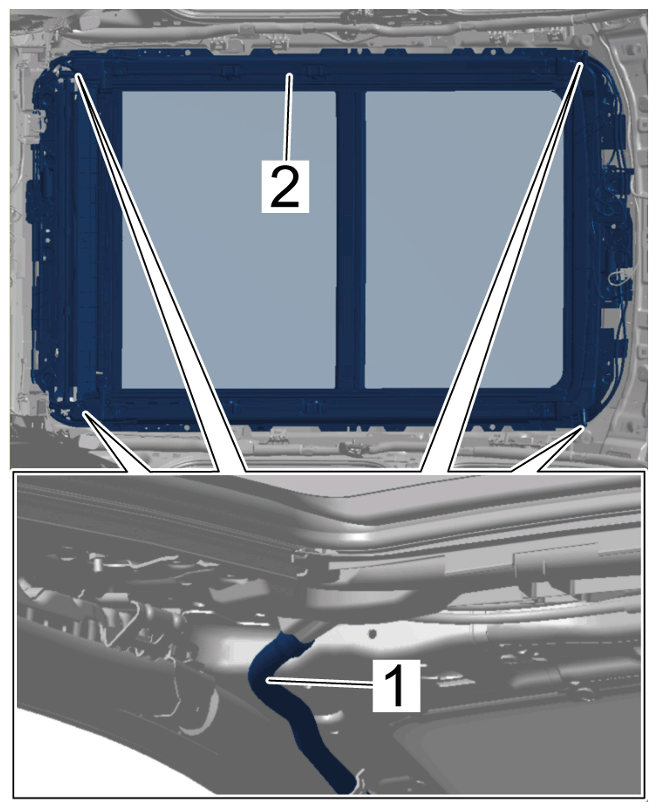

- Disconnect water drain hoses -1-
from the roof assembly -2-
.
Water drain hoses
Information
Two helpers required

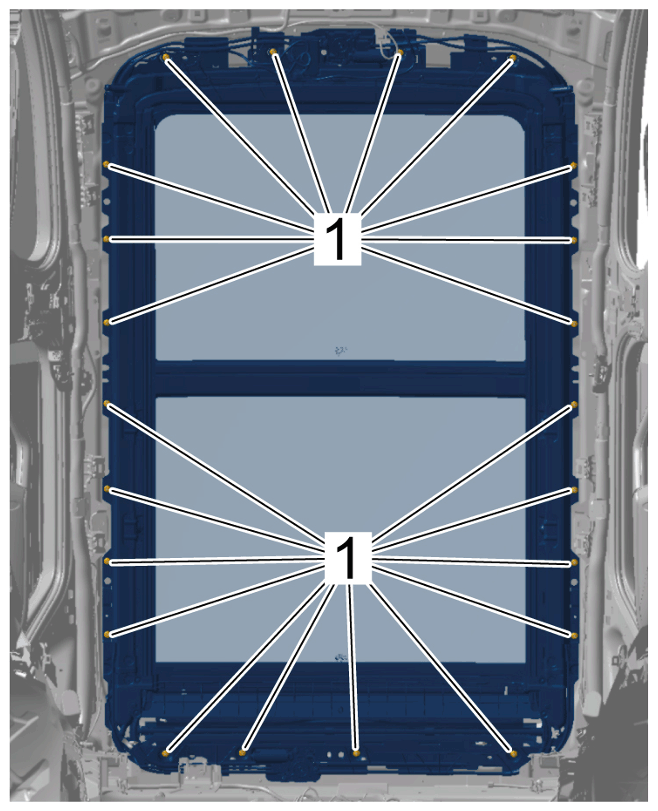

- Unscrew nuts -1-
and remove roof assembly through the luggage compartment.
Nuts
